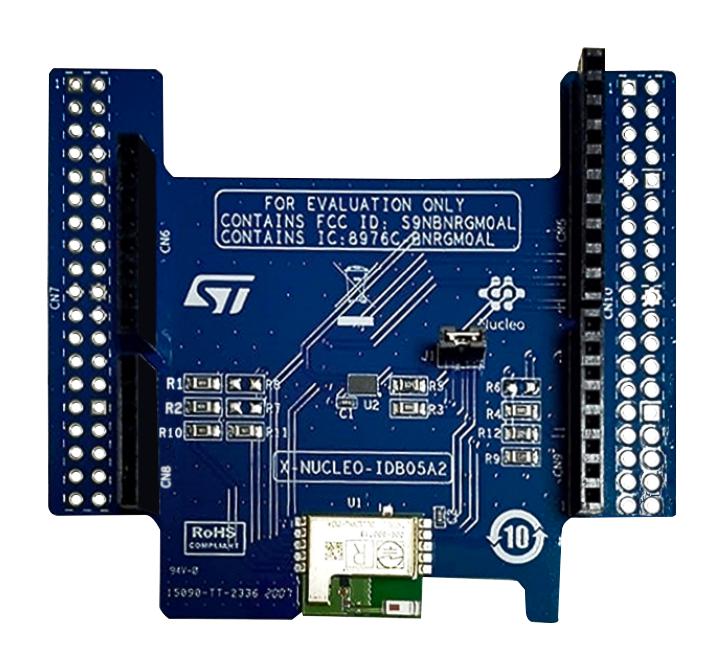

- Bluetooth low energy expansion board based on the BlueNRG-M0 module for STM32 Nucleo
- STM32 Nucleo expansion board based on BlueNRG-M0 Bluetooth v4.2, FCC and IC certified module
- Embedded Bluetooth low energy protocol stack (GAP, GATT, SM, L2CAP, LL, RFPHY)
- Embedded BlueNRG-MS network processor
- On-board chip antenna
- Small form factor of 11.5mm x 13.5mm
- Equipped with Arduino UNO R3 connector
- Scalable solution capable of cascading multiple boards for larger systems
Product details
| Silicon Manufacturer |
STMicroelectronics |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
BlueNRG-M0, BlueNRG-MS |
| Silicon Family Name |
- |
| For Use With |
STMicroelectronics STM32 Nucleo Development Board |
| Kit Contents |
BLE Expansion Board BlueNRG-M0/BlueNRG-MS |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
X-NUCLEO-IDB05A2 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
