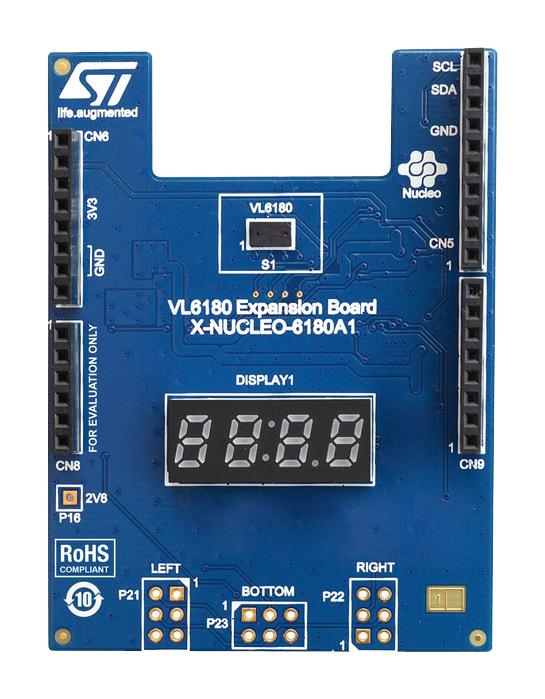

- Proximity ToF sensor expansion board based on VL6180V1 for STM32 Nucleo
- VL6180 Time-of-Flight (ToF) proximity sensor
- Ranging measurement up to 62cm
- 4-digit display, displaying the distance of a target from the proximity sensor
- Excellent ranging accuracy, independent of the reflectance of the target
- Up to 3 external breakout VL6180 boards can be connected to the expansion board
- Breakout boards can be ordered using the reference VL6180-SATEL
- Compatible with STM32 Nucleo board family
- Equipped with ArduinoTM UNO R3 connector
Product details
| Silicon Manufacturer |
STMicroelectronics |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
VL6180 |
| Silicon Family Name |
- |
| For Use With |
STMicroelectronics STM32 Nucleo Development Boards |
| Kit Contents |
ToF Proximity Sensor Expansion Board VL6180 |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
X-NUCLEO-6180A1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
