VNB10N07TR-E is a omnifet fully autoprotected power MOSFET. This mosfet is intended for replacement of standard power MOSFETS in DC to 50KHz applications. Built-in thermal shut-down, Linear current limitation and overvoltage clamp protects the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.
- ESD protection, integrated clamp
- Diagnostic feedback through input pin
- Compatible with standard power MOSFET
- Linear current limitation
- Short circuit protection
- Thermal shut down
- Direct access to the gate of the power MOSFET (analogue driving)
- Storage temperature range is -55°C to 150°C
- Input voltage range is 18V
Product details
| Power Load Switch Type:
-
|
| Input Voltage:
18V
|
| Current Limit:
10A
|
| On State Resistance:
0.1ohm
|

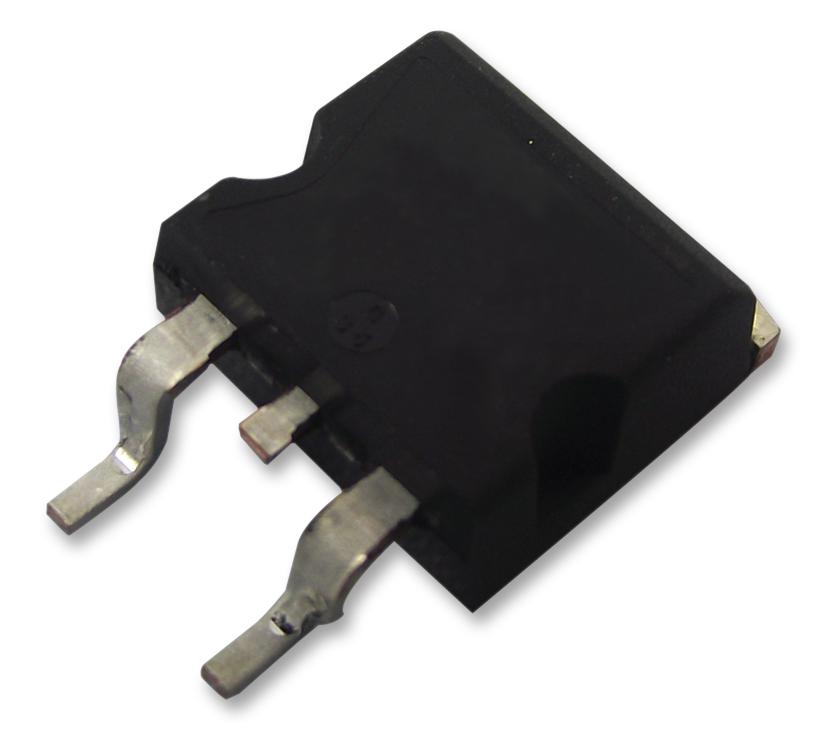

| Distribution Switch Case Style:
TO-263 (D2PAK)
|
| No. of Pins:
3Pins
|
| Thermal Protection:
Yes
|
| On / Enable Input Polarity:
-
|
| No. of Outputs:
1Outputs
|
| Operating Temperature Min:
-
|
| Operating Temperature Max:
-
|
| Product Range:
-
|
| Automotive Qualification Standard:
-
|
| MSL:
MSL 3 - 168 hours
|
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
VNB10N07TR-E |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
