Description

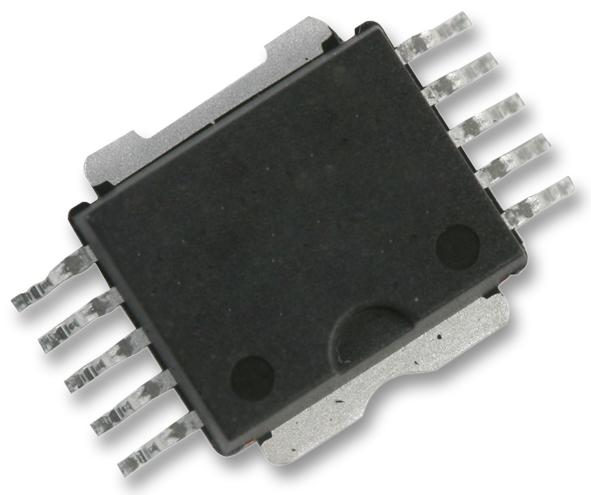

The VN330SP-E is a quad high side smart power Solid State Relay intended for driving four independent resistive or inductive loads, with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from over temperature and short circuit. The open drain diagnostic output indicates over temperature conditions.
- 0.7A per Channel output current
- Digital input clamped at 32V minimum voltage
- Shorted load and over-temperature protections
- Built-in current limiter
- Under voltage shutdown
- Open drain diagnostic output
- Fast demagnetization of inductive loads
Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | STMICROELECTRONICS |
| Part Number | VN330SP-E |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
