Description

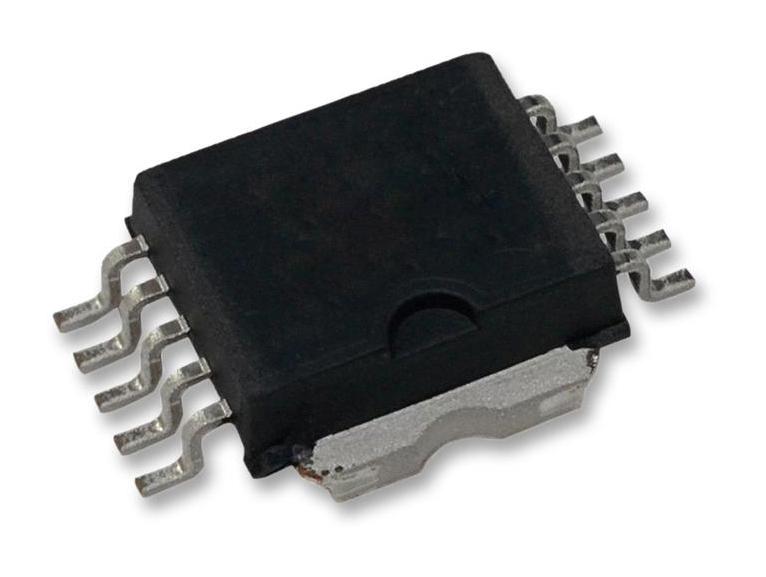

The VIPER53SPTR-E is an Offline Primary Switch combines an enhanced current mode PWM controller with a high voltage MDMesh Power MOSFET. Typical applications cover offline power supplies with a secondary power capability ranging up to 30W in wide range input voltage or 50W in single European voltage range. It features overload and short circuit controlled by feedback monitoring and delayed device reset, efficient standby mode by enhanced pulse skipping and primary regulation or secondary loop failure protection through high gain error amplifier.
- Current limitation
- Current mode control with adjustable limitation
- Soft start and shut-down control
- Automatic burst mode in standby condition
- Undervoltage lockout with hysteresis
- High voltage start-up current source
- Over temperature protection
- Overload and short-circuit control
Applications
Power Management, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Input Voltage Min: 195VAC |
| Input Voltage Max: 265VAC |
| IC Case / Package: PowerSO |
| No. of Pins: 10Pins |
| Power Rating Max: 65W |
| Topology: Flyback |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 150°C |
| Product Range: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | VIPER53SPTR-E |
| Quantity | Each |
| Technical Data Sheet EN |  |
