Description

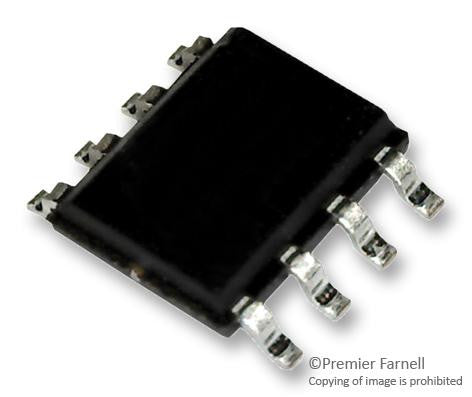

The VIPER12AS-E is a low power off-line switched-mode power supply Primary Switcher. It combines a dedicated current mode PWM controller with a high voltage power MOSFET on the same silicon chip. The internal control circuit offers the benefits like large input voltage range on the VDD pin accommodates changes in auxiliary supply voltage, automatic burst mode in low load condition and overvoltage protection in HICCUP mode.
- Current mode control
- Auxiliary under-voltage lockout with hysteresis
- High voltage start-up current source
- Over-temperature, over-current and overvoltage protection with auto-restart
Applications
Power Management, Consumer Electronics, Motor Drive & Control
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 150°C |
| No. of Pins | 8Pins |
| Frequency | 60kHz |
| Output Voltage | 730V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 9V |
| Packaging | Cut Tape |
| Supply Voltage Max | 38V |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | VIPER12AS-E |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
