Description

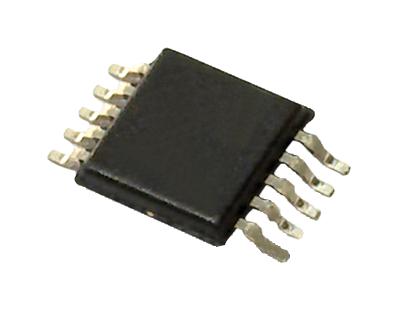

The VIPER06LSTR is a VIPer� plus fixed-frequency energy-saving Off-line Converter with an 800V avalanche rugged power section, a PWM controller, a user-defined over-current limit, open-loop failure protection and hysteretic thermal protection. The 4W high voltage converter features soft start-up and safe auto-restart after any fault condition. The device is able to power itself directly from the rectified mains and eliminating the need for an auxiliary bias winding. Burst mode operation and the device have very low power consumption both help to meet the standards set by energy-saving regulations.
- PWM operation with frequency jittering for low EMI
- No need for an auxiliary winding in low-power applications
- Limiting current with adjustable set point
- On-board soft-start
- Safe auto-restart after a fault condition
- Hysteretic thermal shutdown
Applications
Power Management, Consumer Electronics, Metering
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Input Voltage Min: 85VAC |
| Input Voltage Max: 265VAC |
| IC Case / Package: SSO |
| No. of Pins: 10Pins |
| Power Rating Max: 8W |
| Topology: Flyback |
| Isolation: Isolated, Non Isolated |
| Power Switch Voltage Rating: 800V |
| Power Switch Current Rating: 60µA |
| Switching Frequency: 60kHz |
| IC Mounting: Surface Mount |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | VIPER06LSTR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
