| ₹ 372.59 includes GST and import duties. | |
| B2B customers can avail ₹ 56.82 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The TSU104IQ4T is a nanopower quad CMOS Operational Amplifier with rail-to-rail input and output. The TSU102 operational amplifier offers an ultra low-power consumption of 580nA typical and 750nA maximum per channel when supplied by 1.8V. Combined with a supply voltage range of 1.5 to 5.5V, these features allow the TSU10x series to be efficiently supplied by a coin type Lithium battery or a regulated voltage in low-power applications. The 8kHz gain bandwidth of this device make them ideal for sensor signal conditioning and battery supplied applications.
- Unity gain stable
- Tolerance to power supply transient drops
- Accurate signal conditioning of high impedance sensors
- Application performances guaranteed over industrial temperature range
- Fast desaturation
- Submicro ampere current consumption - 580nA typical per channel at 25°C at VCC=1.8V
- 5pA at 25°C Maximum low input bias current
- 2kV HBM High tolerance to ESD
Portable Devices, Metering, Sensing & Instrumentation, Medical, Signal Processing
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | STMICROELECTRONICS |
| Part Number | TSU104IQ4T |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| Product Change Notice EN | |

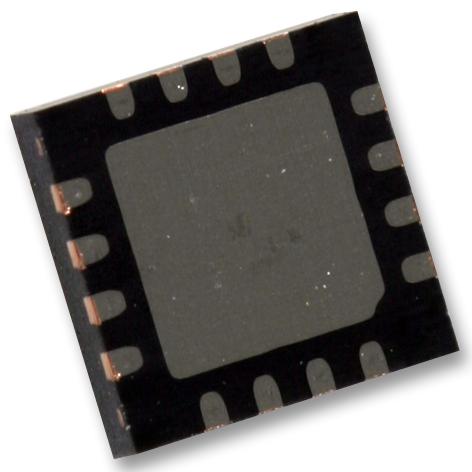

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 365.14 |
| 3-5 | ₹ 361.41 |
| 5-10 | ₹ 353.96 |
| 10+ | ₹ 346.51 |
Bulk discount will be automatically applied during checkout based on quantity.
