Description

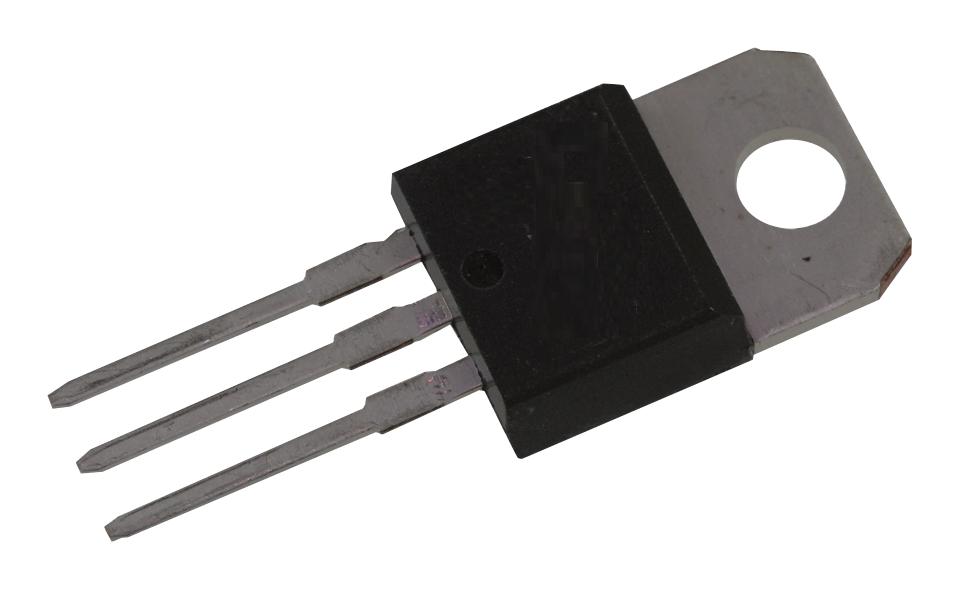

This is a TN1610H-6I Thyristor , 600 V, 10 mA, 10 A, 16 A, TO-220AB, 3 Pins product from STMICROELECTRONICS with the model number TN1610H-6I
Product details
| Peak Repetitive Off-State Voltage, Vdrm | 600V |
| Gate Trigger Current Max, Igt | 10mA |
| Current It av | 10A |
| On State RMS Current IT(rms) | 16A |
| Thyristor Case Style | TO-220AB |
| No. of Pins | 3Pins |
| Peak Non Rep Surge Current Itsm 50Hz | 140A |
| Holding Current Max Ih | 30mA |
| Gate Trigger Voltage Max Vgt | 1.3V |
| Operating Temperature Max | 150°C |
| Product Range | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | TN1610H-6I |
| Quantity | Each |
| Technical Data Sheet EN |  |
