Description

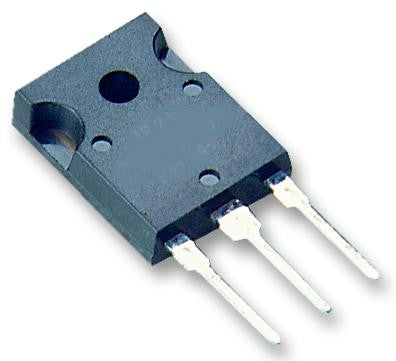

The TIP3055 from STMicroelectronics is a through hole complementary power transistor in TO-247 package. This device manufactured in epitaxial base planar technology and suitable for general purpose, power linear and switching applications.
- Collector to emitter voltage (Vce) is 70V at 100 ohm RBE
- Collector current (Ic) is 15A
- Power dissipation (Pd) is 90W
- Collector to emitter saturation voltage of 3V at 10A collector current
- DC current gain (hFE) of 5 at 10A collector current
- Operating junction temperature range from 150°C
Applications
Power Management, Consumer Electronics, Portable Devices, Industrial
Product details
| Power Dissipation Pd | 90W |
| DC Collector Current | 15A |
| Collector Emitter Voltage V(br)ceo | 70V |
| Transition Frequency ft | - |
| Operating Temperature Max | 150°C |
| Transistor Polarity | NPN |
| DC Current Gain hFE | 70hFE |
| No. of Pins | 3Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Transistor Case Style | TO-247 |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | TIP3055 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
