Description
The STW5NK100Z is a SuperMESH3� N-channel Power MOSFET features minimized gate charge. This new SuperMESH� Power MOSFET is the result of further design improvements on ST's well-established strip based PowerMESH� layout. In addition to significantly lower ON-resistance, the device offers superior dV/dt capability to ensure optimal performance even in the most demanding applications. The SuperMESH� device further complements an already broad range of innovative high voltage MOSFETs, which includes the revolutionary MDmesh� products.
- Extremely high dV/dt capability
- 100% Avalanche tested
- Very low intrinsic capacitance
- Very good manufacturing repeatability
Applications
Industrial, Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 1kV |
| Continuous Drain Current Id: 3.5A |
| Drain Source On State Resistance: 3.7ohm |

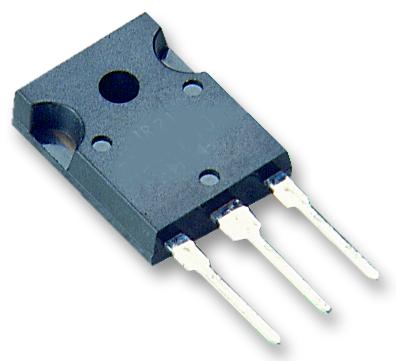

| Transistor Case Style: TO-247 |
| Transistor Mounting: Through Hole |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 3.75V |
| Power Dissipation: 125W |
| No. of Pins: 3Pins |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Qualification: - |
| MSL: - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STW5NK100Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 627.11 |
| 3-5 | ₹ 620.71 |
| 5-10 | ₹ 607.91 |
| 10+ | ₹ 595.12 |
Bulk discount will be automatically applied during checkout based on quantity.
