Description

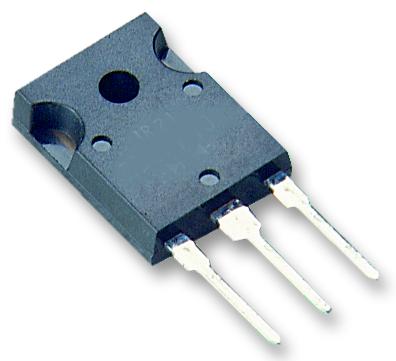

The STW14NK50Z is a SuperMESH� N-channel Zener-protected Power MOSFET obtained through an extreme optimization of ST's well established strip-based PowerMESH� layout. In addition to pushing On-resistance significantly down, special care is taken to ensure a very good dV/dt capability for the most demanding applications.
- Extremely high dV/dt capability
- 100% Avalanche tested
- Gate charge minimized
- Very low intrinsic capacitances
- Very good manufacturing repeatability
- -55 to 150°C Operating junction temperature range
Applications
Power Management, Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 500V |
| Continuous Drain Current Id: 14A |
| Drain Source On State Resistance: 0.34ohm |
| Transistor Case Style: TO-247 |
| Transistor Mounting: Through Hole |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 3.75V |
| Power Dissipation: 150W |
| No. of Pins: 3Pins |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Qualification: - |
| MSL: - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STW14NK50Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
