| ₹ 720.45 includes GST and import duties. | |
| B2B customers can avail ₹ 109.87 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The STW10NK80Z is a 800V N-channel Zener-protected Power MOSFET developed using SuperMESH� technology, achieved through optimization of well established strip-based PowerMESH� layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Improved gate charge and lower power dissipation to meet today's challenging efficiency requirements.
- Extremely high dv/dt capability
- 100% Avalanche tested
- Gate charge minimized
- Very low intrinsic capacitance
- Very good manufacturing repeatability
Applications
Industrial
Warnings
ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 800V |
| Continuous Drain Current Id: 9A |
| Drain Source On State Resistance: 0.9ohm |

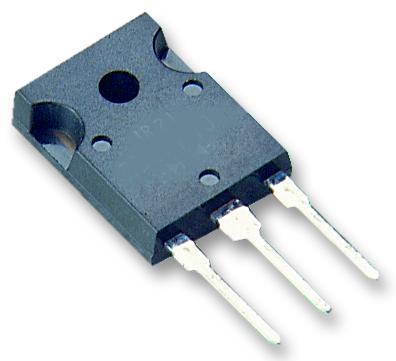

| Transistor Case Style: TO-247 |
| Transistor Mounting: Through Hole |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 3.75V |
| Power Dissipation: 160W |
| No. of Pins: 3Pins |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Qualification: - |
| MSL: - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STW10NK80Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 706.04 |
| 3-5 | ₹ 698.84 |
| 5-10 | ₹ 684.43 |
| 10+ | ₹ 670.02 |
Bulk discount will be automatically applied during checkout based on quantity.
