| ₹ 752.52 includes GST and import duties. | |
| B2B customers can avail ₹ 114.76 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

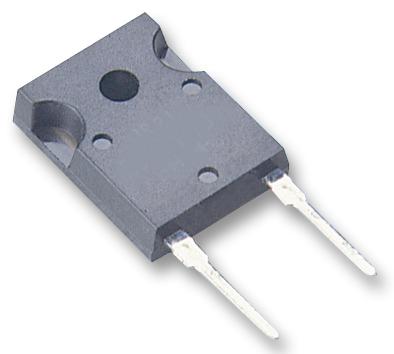

This is a STTH6012WL Fast / Ultrafast Diode , 1.2 kV, 60 A, Single, 2.25 V, 125 ns, 400 A New product from STMICROELECTRONICS with the model number STTH6012WL
Product details
| Repetitive Peak Reverse Voltage | 1.2kV |
| Average Forward Current | 60A |
| Diode Configuration | Single |
| Forward Voltage Max | 2.25V |
| Reverse Recovery Time | 125ns |
| Forward Surge Current | 400A |
| Operating Temperature Max | 175°C |
| Diode Case Style | DO-247LL |
| No. of Pins | 2 Pin |
| Product Range | - |
| Qualification | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STTH6012WL |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 737.47 |
| 3-5 | ₹ 729.94 |
| 5-10 | ₹ 714.89 |
| 10+ | ₹ 699.84 |
Bulk discount will be automatically applied during checkout based on quantity.
