Description

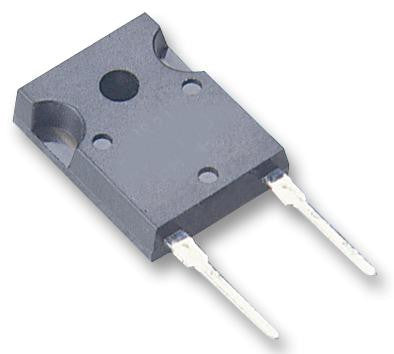

The STTH3010W is a high voltage ultrafast Recovery Diode. The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability. Such demanding applications include similar mission-critical systems that require rectification and freewheeling. This diode also fit into auxiliary functions such as snubber, bootstrap and demagnetization applications. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
- Very low conduction and switching losses
- High frequency or high pulsed current operation
- High reverse voltage capability
- High junction temperature
- 50A RMS forward current
- 1.1°C/W Junction-to-case thermal resistance
- 175°C Maximum operating junction temperature
Applications
Industrial, Power Management, Motor Drive & Control
Product details
| Forward Voltage VF Max | 840mV |
| No. of Pins | 2 Pin |
| Operating Temperature Max | 175°C |
| Forward Current If(AV) | 20A |
| Product Range | STTH3 Series |
| Automotive Qualification Standard | - |
| Diode Configuration | Single |
| Reverse Recovery Time trr Max | 42ns |
| Repetitive Reverse Voltage Vrrm Max | 1kV |
| Packaging | Each |
| Diode Case Style | DO-247 |
| Forward Surge Current Ifsm Max | 180A |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STTH3010W |
| Quantity | Each |
| Technical Data Sheet EN |  |
