| ₹ 275.14 includes GST and import duties. | |
| B2B customers can avail ₹ 41.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

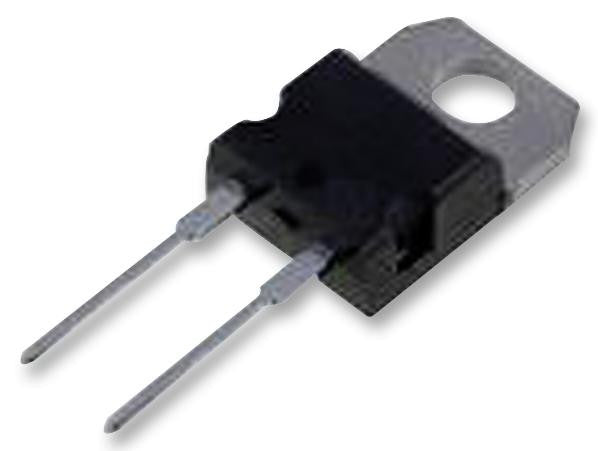

The STTH12R06D is a Turbo 2 ultrafast High Voltage Rectifier features low reverse recovery current, low thermal resistance and reduces switching losses. It uses ST Turbo 2 600V technology and is specially suited as a boost diode in continuous mode power factor corrections and hard switching conditions.
- Ultrafast switching
- 30A Forward RMS current
- 1.7°C/W Junction to case thermal resistance
Applications
Power Management
Product details
| Forward Voltage VF Max | 2.9V |
| No. of Pins | 2 Pin |
| Operating Temperature Max | 175°C |
| Forward Current If(AV) | 30A |
| Product Range | STTH1 Series |
| Automotive Qualification Standard | - |
| Diode Configuration | Single |
| Reverse Recovery Time trr Max | 45ns |
| Repetitive Reverse Voltage Vrrm Max | 600V |
| Packaging | Each |
| Diode Case Style | TO-220AC |
| Forward Surge Current Ifsm Max | 100A |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STTH12R06D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 269.64 |
| 3-5 | ₹ 266.89 |
| 5-10 | ₹ 261.38 |
| 10+ | ₹ 255.88 |
Bulk discount will be automatically applied during checkout based on quantity.
