Description

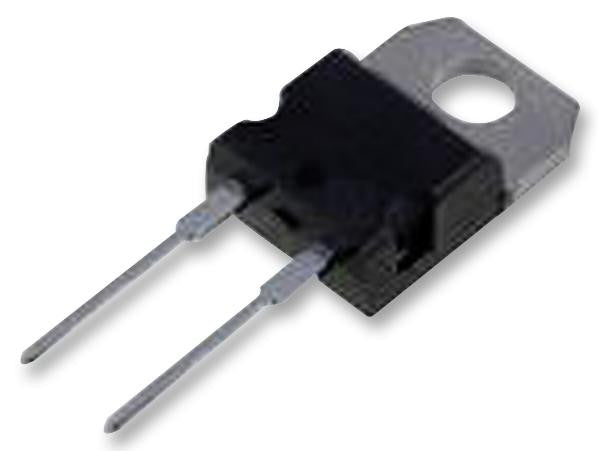

The STTH1212D is an ultrafast Soft Recovery Diode with high reverse voltage capability. The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long term reliability. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
- Very low conduction and switching losses
- High frequency and high pulsed current operation
- High junction temperature
- 30A RMS forward current
- 1.6�C/W Junction to case thermal resistance
Applications
Power Management, Industrial, Motor Drive & Control
Product details
| Forward Voltage VF Max | 590mV |
| No. of Pins | 2 Pin |
| Operating Temperature Max | 175�C |
| Forward Current If(AV) | 12A |
| Product Range | STTH1 Series |
| Diode Configuration | Single |
| Reverse Recovery Time trr Max | 50ns |
| Repetitive Reverse Voltage Vrrm Max | 1.2kV |
| Packaging | Each |
| Diode Case Style | TO-220AC |
| Forward Surge Current Ifsm Max | 100A |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STTH1212D |
| Quantity | Each |
| Technical Data Sheet EN |  |
