Description

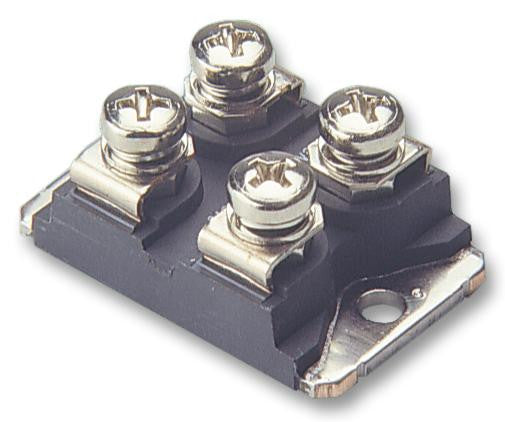

This is a Fast / Ultrafast Diode, 1.2 kV, 60 A, Dual Isolated, 1.3 V, 50 ns, 420 A product from STMICROELECTRONICS with the model number STTH12012TV1
Product details
| Forward Voltage VF Max | 1.3V |
| No. of Pins | 4 Pin |
| Operating Temperature Max | 150°C |
| Forward Current If(AV) | 60A |
| Product Range | STTH1 Series |
| Automotive Qualification Standard | - |
| Diode Configuration | Dual Isolated |
| Reverse Recovery Time trr Max | 50ns |
| Repetitive Reverse Voltage Vrrm Max | 1.2kV |
| Packaging | Each |
| Diode Case Style | ISOTOP |
| Forward Surge Current Ifsm Max | 420A |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STTH12012TV1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
