Description

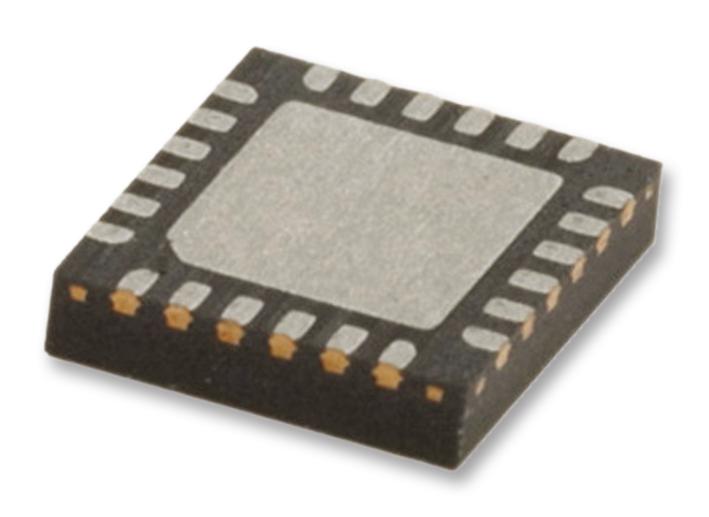

The STSPIN820 is a stepper motor driver which integrates, in a small QFN 4mm x 4mm package, both control logic and a low RDSon power stage. The integrated controller implements a PWM current control with fixed OFF time and a microstepping resolution up to 1/256th of the step. The device can be forced into a low consumption state. The device offers a complete set of protection features including overcurrent, overtemperature and short-circuit protection.
- Operating voltage from 7V to 45V
- Maximum output current 1.5A
- RDSon HS + LS = 1R typ.
- Microstepping up to 1/256th of step
- Current control with programmable OFF time
- Current sensing based on external shunt resistor
- Full protection set
- Non-dissipative overcurrent protection
- Short-circuit protection
- Undervoltage lockout
- Thermal shutdown
- Standby low consumption
Medical, Computers & Computer Peripherals, Automation & Process Control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | STMICROELECTRONICS |
| Part Number | STSPIN820 |
| Quantity | |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
