| ₹ 446.53 includes GST and import duties. | |
| B2B customers can avail ₹ 68.1 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The STP9NK70ZFP is a 700V N-channel Zener-protected Power MOSFET developed using SuperMESH� technology, achieved through optimization of well established strip-based PowerMESH� layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Improved gate charge and lower power dissipation to meet today's challenging efficiency requirements.
- Extremely high dv/dt capability
- Improved ESD capability
- 100% Avalanche tested
- Gate charge minimized
- Very low intrinsic capacitance
- Very good manufacturing repeatability
Applications
Industrial, Power Management
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Power Dissipation Pd | 35W |
| Operating Temperature Max | 150�C |
| Continuous Drain Current Id | 4A |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 3.75V |
| Product Range | - |
| Drain Source Voltage Vds | 700V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | TO-220FP |
| On Resistance Rds(on) | 1ohm |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STP9NK70ZFP |
| Quantity | Each |
| Technical Data Sheet EN |  |

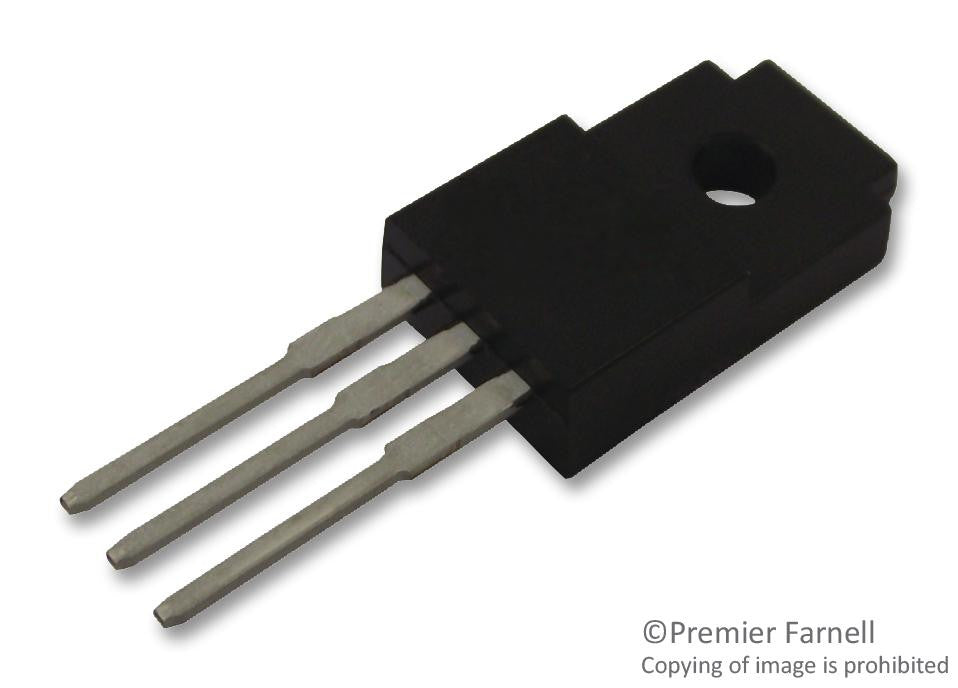

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 437.6 |
| 3-5 | ₹ 433.13 |
| 5-10 | ₹ 424.2 |
| 10+ | ₹ 415.27 |
Bulk discount will be automatically applied during checkout based on quantity.
