Description

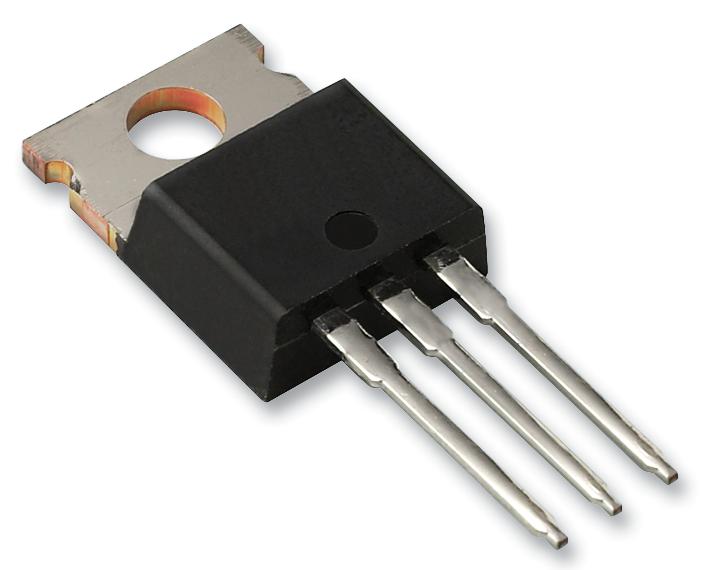

The STP80NF55-06 is a 55V N-channel STripFET� II Power MOSFET developed using unique "single feature size"� strip-based process. The resulting transistor shows extremely high packing density for low on resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility. Improved gate charge and lower power dissipation to meet today's challenging efficiency requirements.
- Exceptional dv/dt capability
- 100% Avalanche tested
- Application oriented characterization
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 55V |
| Continuous Drain Current Id: 80A |
| Drain Source On State Resistance: 0.0065ohm |
| Transistor Case Style: TO-220 |
| Transistor Mounting: Through Hole |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 3V |
| Power Dissipation: 300W |
| No. of Pins: 3Pins |
| Operating Temperature Max: 175°C |
| Product Range: STP |
| Qualification: - |
| MSL: MSL 2 - 1 year |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STP80NF55-06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
