Description

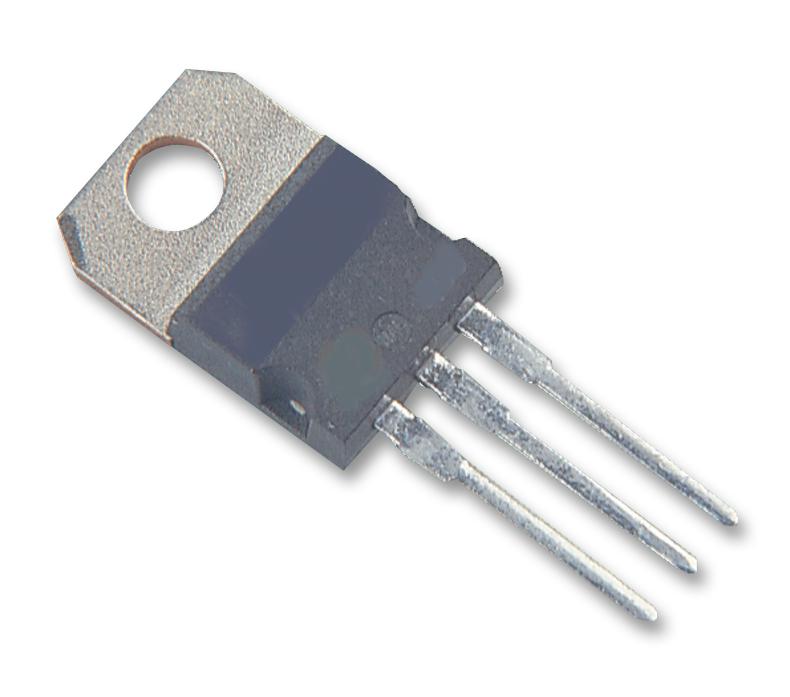

This is a STP65N150M9 Power MOSFET , N Channel, 650 V, 20 A, 0.128 ohm, TO-220, Through Hole product from STMICROELECTRONICS with the model number STP65N150M9
Product details
| Channel Type | N Channel |
| Drain Source Voltage Vds | 650V |
| Continuous Drain Current Id | 20A |
| Drain Source On State Resistance | 0.128ohm |
| Transistor Case Style | TO-220 |
| Transistor Mounting | Through Hole |
| Rds(on) Test Voltage | 10V |
| Gate Source Threshold Voltage Max | 4.2V |
| Power Dissipation | 140W |
| No. of Pins | 3Pins |
| Operating Temperature Max | 150°C |
| Product Range | - |
| Qualification | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STP65N150M9 |
| Quantity | Each |
| Technical Data Sheet EN |  |
