Description
The STP5NK80Z is a 800V N-channel Zener-protected Power MOSFET developed using SuperMESH� technology, achieved through optimization of well established strip-based PowerMESH� layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Improved gate charge and lower power dissipation to meet today's challenging efficiency requirements.
- 100% Avalanche tested
- Gate charge minimized
- Very low intrinsic capacitance
- Very good manufacturing repeatability
Applications
Industrial
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type: N Channel |
| Drain Source Voltage Vds: 800V |
| Continuous Drain Current Id: 4.3A |
| Drain Source On State Resistance: 1.9ohm |

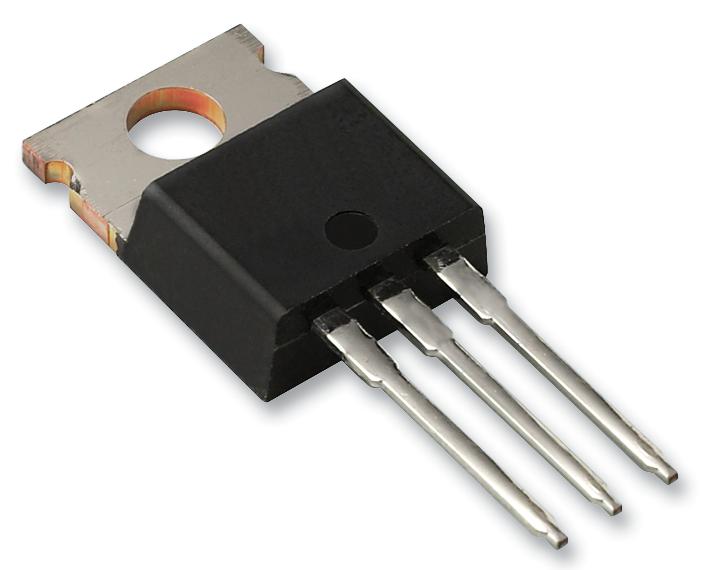

| Transistor Case Style: TO-220 |
| Transistor Mounting: Through Hole |
| Rds(on) Test Voltage: 10V |
| Gate Source Threshold Voltage Max: 3.75V |
| Power Dissipation: 110W |
| No. of Pins: 3Pins |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Qualification: - |
| MSL: - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STP5NK80Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
