The STP24DP05BTR is a 24-bit constant current LED Sink Driver with output error detection. The monolithic, low-voltage low current shift register designed for LED panel displays. The device contains an 8 x 3-bit serial-in, parallel-out shift register that feeds a 8 x 3-bit D-type storage register. In the output stage, twenty four regulated current sources were designed to provide 5 to 80mA constant current to drive the LEDs. The 8 x 3 shift register data flow sequence order can be managed through two dedicated pins. The STP24DP05 has a dedicated pin to activate the outputs with a sequential delay, that prevents inrush current during output turn-ON. The device detection circuit checks 3 different conditions that can occur on the output line: short to GND, short to VO or open line. The data detection results are loaded in the shift registers and shifted out via the serial line output.
- Low-voltage power supply down to 3V
- 8 x 3 Constant current output channels
- Adjustable output current through external resistors
- Short and open output error detection
- Serial data-in/parallel data-out
- Shift register data flow register control
- Accepts 3.3 and 5V micro driver
Applications
Computers & Computer Peripherals
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Topology |
Constant Current |
| No. of Outputs |
24Outputs |
| Output Current |
80mA |
| Output Voltage |
20V |
| Driver Case Style |
HTQFP |
| No. of Pins |
48Pins |
| Input Voltage Min |
3V |
| Input Voltage Max |
5.5V |
| Switching Frequency |
25MHz |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
MSL 3 - 168 hours |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STP24DP05BTR |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

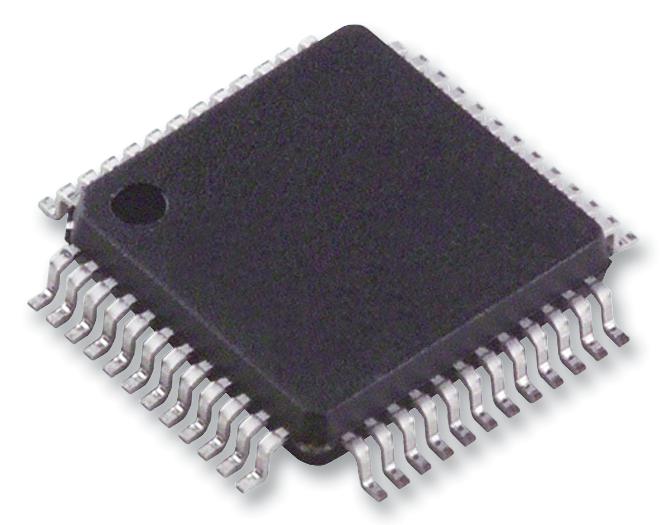

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
