Description

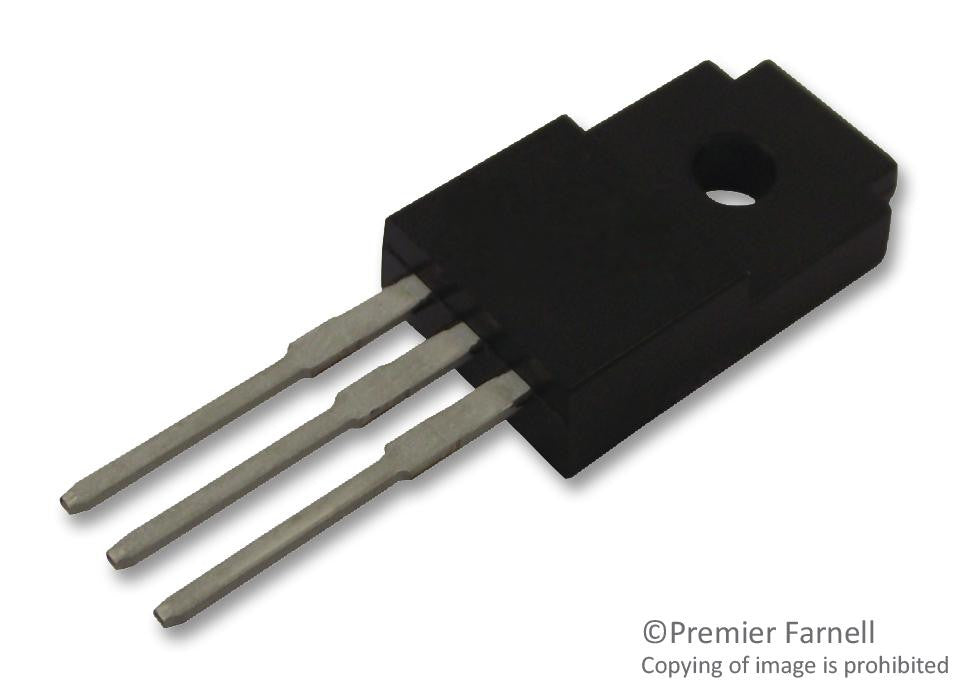

The STP20NM60FP is an N-channel MDmesh� Power MOSFET has an outstanding low on-resistance, impressively high dv/dt and excellent avalanche characteristics. The MDmesh� is a new revolutionary Power MOSFET technology that associates the multiple drain process with the company's PowerMESH� horizontal layout. The adoption of the company's proprietary strip technique yields overall dynamic performance that is significantly better than that of similar competition's products.
- 100% Avalanche tested
- High dv/dt and avalanche capabilities
- Low input capacitance and gate charge
- Low gate input resistance
Applications
Industrial
Product details
| Power Dissipation Pd | 45W |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | 20A |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 4V |
| Product Range | - |
| Drain Source Voltage Vds | 600V |
| Rds(on) Test Voltage Vgs | 30V |
| Transistor Case Style | TO-220FP |
| On Resistance Rds(on) | 0.25ohm |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STP20NM60FP |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
