The STP16CPC26MTR is a 16-bit monolithic low-voltage constant current LED Sink Driver. The device contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. In the output stage 16 regulated current generators provide 5 to 90mA constant current to drive LEDs. The current is externally adjusted through a resistor and the LED brightness can be adjusted from 0 to 100% via OE pin. This guarantees a 20V driving capability, allowing users to connect more LEDs in series to each current source.
- 16 Constant current output channels
- Adjustable output current through external resistor
- ±1% Typical current accuracy bit to bit
- Thermal shutdown for over-temperature protection
Applications
Imaging, Video & Vision
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Topology |
Constant Current |
| No. of Outputs |
16Outputs |
| Output Current |
90mA |
| Output Voltage |
20V |
| Driver Case Style |
SOIC |
| No. of Pins |
24Pins |
| Input Voltage Min |
3V |
| Input Voltage Max |
5.5V |
| Switching Frequency |
30MHz |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
MSL 1 - Unlimited |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STP16CPC26MTR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

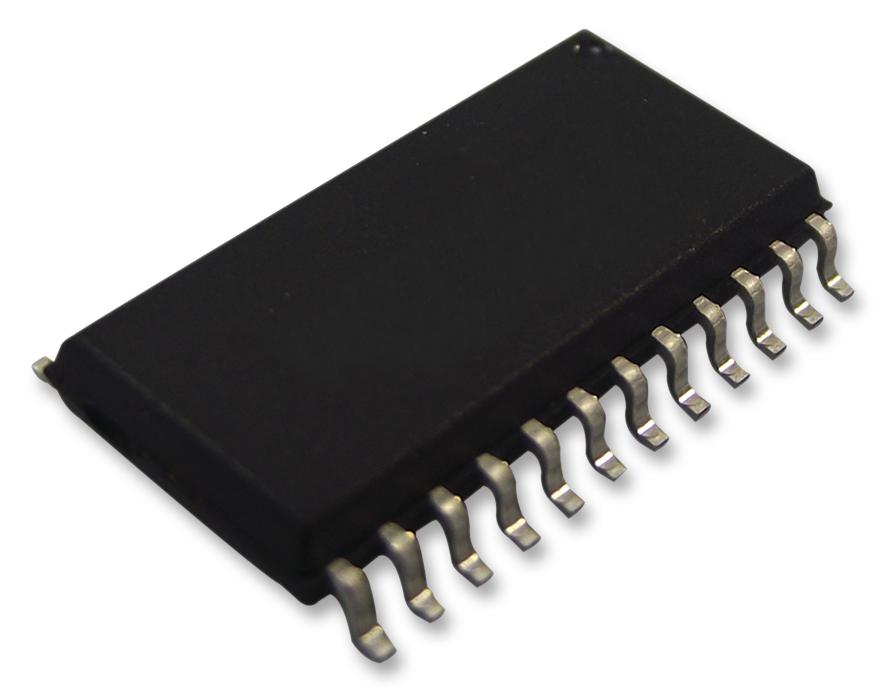

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
