This device is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The STP16CP05 contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bit, D-type storage register. In the output stage, sixteen regulated current sources provide from 5 mA to 100 mA constant current to drive the LEDs.
- Low voltage power supply
- 16 constant current output channels
- Adjustable output current through external resistor
- Serial data IN/parallel data OUT
- Can be driven by a 3.3 V microcontroller
- Max clock frequency 30 MHz
Footnotes The LEDs' brightness can be controlled by using an external resistor to adjust the output current Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Topology |
Constant Current |
| No. of Outputs |
16Outputs |
| Output Current |
100mA |
| Output Voltage |
20V |
| Driver Case Style |
SOIC |
| No. of Pins |
24Pins |
| Input Voltage Min |
3V |
| Input Voltage Max |
5.5V |
| Switching Frequency |
30MHz |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
| MSL |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STP16CP05MTR |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

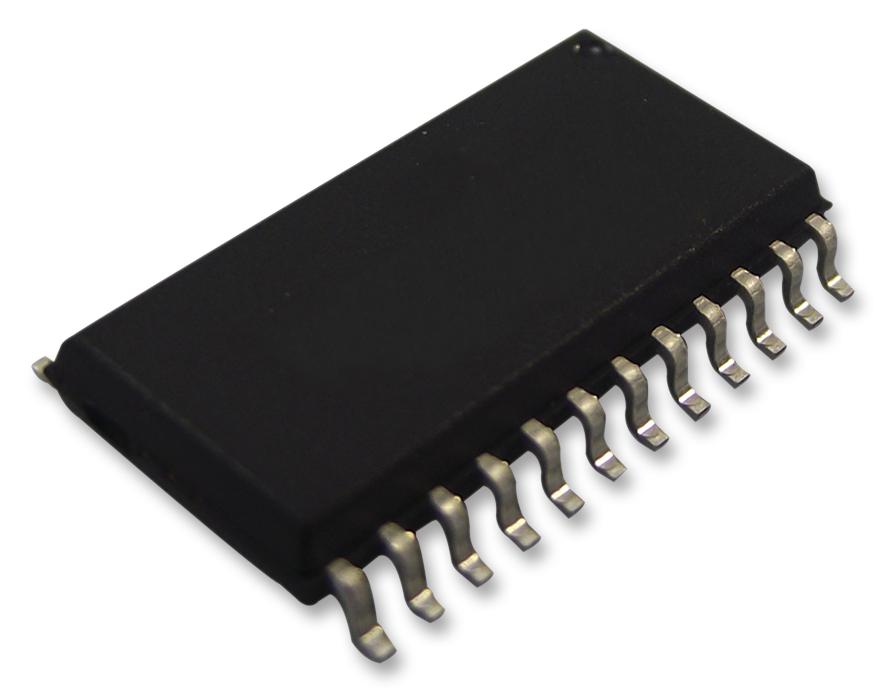

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
