Description
This is a MOSFET Transistor, N Channel, 9 A, 400 V, 550 mohm, 10 V, 3.75 V product from STMICROELECTRONICS with the model number STP11NK40Z
Product details
| Power Dissipation Pd | 110W |
| Operating Temperature Max | 150°C |
| Continuous Drain Current Id | 9A |
| Transistor Polarity | N Channel |
| No. of Pins | 3Pins |
| Threshold Voltage Vgs | 3.75V |
| Product Range | - |
| Automotive Qualification Standard | - |
| Drain Source Voltage Vds | 400V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | TO-220 |
| On Resistance Rds(on) | 0.55ohm |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STP11NK40Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

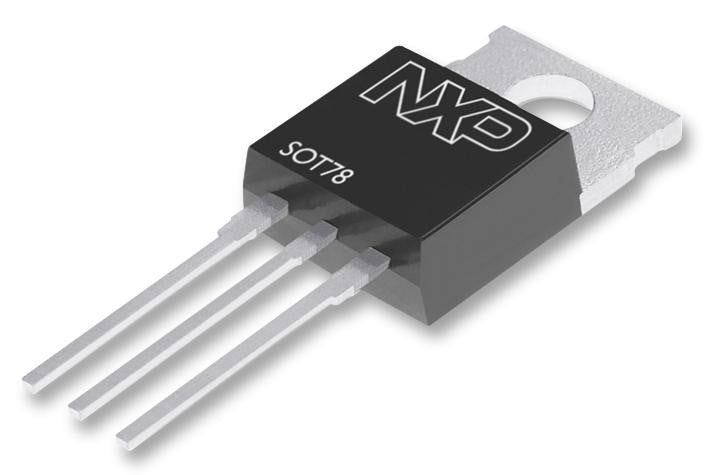

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
