Description

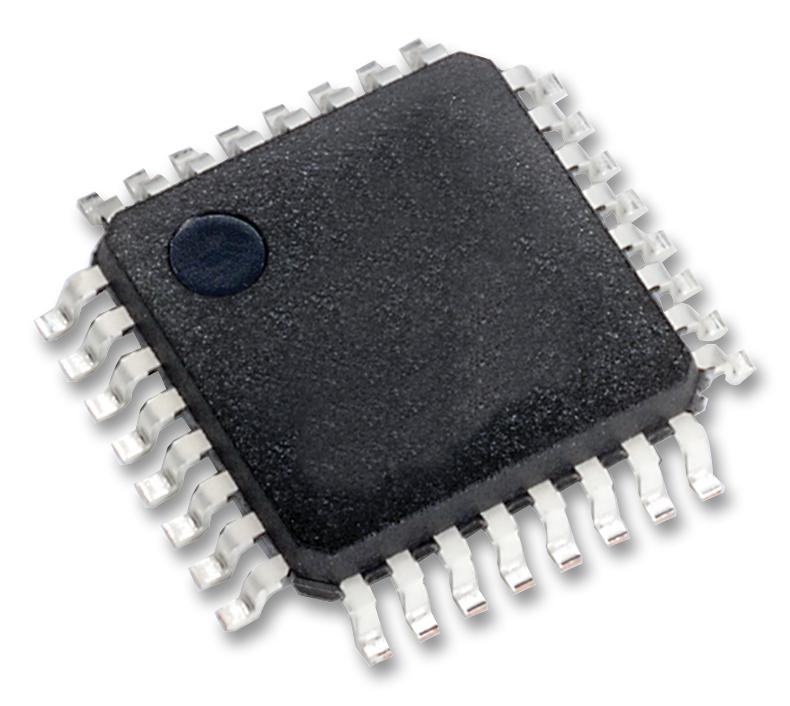

The STM8S105K6T6C is a 8-bit mainstream access line Microcontroller Unit offers 32kB flash program memory, plus integrated true data EEPROM. This STM8S105 access line provides the following benefits of performance and robustness, short development cycles and product longevity. This device performance is ensured by a 16MHz CPU clock frequency and enhanced characteristics which include robust I/O, independent watchdogs and a clock security system.
- Communications interfaces - SPI interface up to 8Mbit/s
- UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
- Highly robust I/O design, immune against current injection
- Interrupt management - Up to 37 external interrupts on 6 vectors
- Nested interrupt controller with 32 interrupts
- Clock, reset and supply management - Security system with clock monitor
- Power management - Low-power modes switch-OFF peripheral clocks individually
- Permanently active, low consumption power-ON and power-DOWN reset
- Unique ID - 96-bit unique key
Applications
Communications & Networking, Computers & Computer Peripherals, Security
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: STM8 Family STM8S Series Microcontrollers |
| Device Core: STM8 |
| Operating Frequency Max: 16MHz |
| Program Memory Size: 32KB |
| No. of Pins: 32Pins |
| IC Case / Package: LQFP |
| No. of I/O's: 25I/O's |
| Interfaces: I2C, SPI, UART |
| RAM Memory Size: 2KB |
| ADC Channels: 7Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 2.95V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: STM8 |
| MCU Series: STM8S |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STM8S105K6T6C |
| Quantity | Each |
| Technical Data Sheet EN |  |
