Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range:

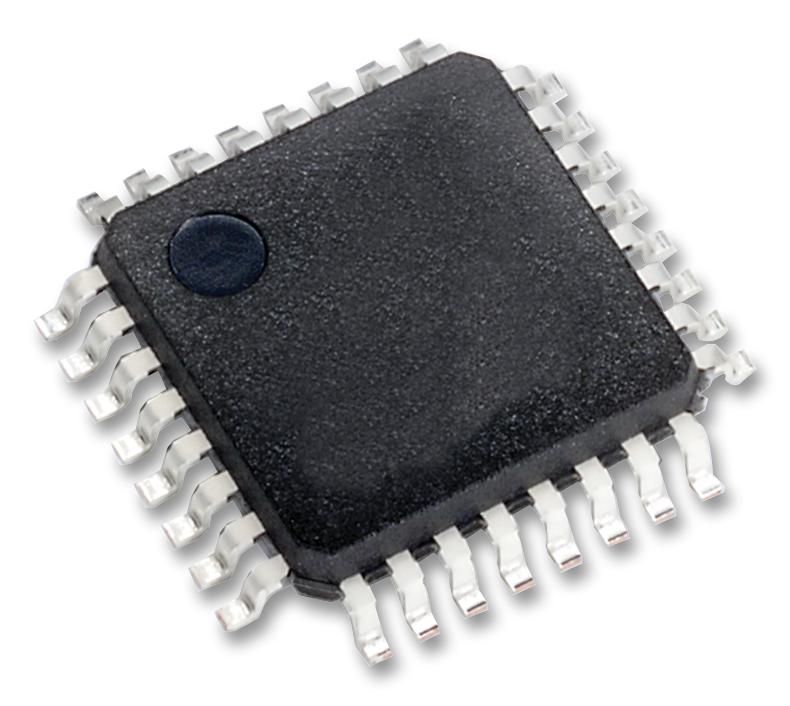

STM8 Family STM8S Series Microcontrollers
|
| Device Core:
STM8
|
| Operating Frequency Max:
16MHz
|
| Program Memory Size:
32KB
|
| No. of Pins:
32Pins
|
| IC Case / Package:
LQFP
|
| No. of I/O's:
25I/O's
|
| Interfaces:
I2C, SPI, UART
|
| RAM Memory Size:
2KB
|
| ADC Channels:
7Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
2.95V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
125°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
STM8
|
| MCU Series:
STM8S
|
| Qualification:
-
|
| MSL:
MSL 3 - 168 hours
|
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM8S105K6T3C |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
