Description

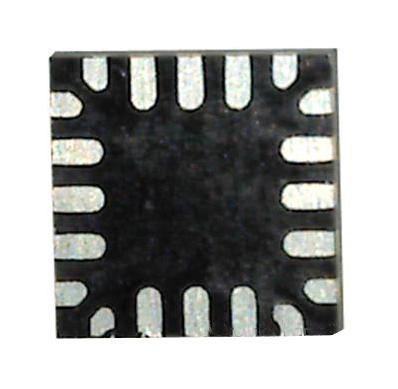

Value line, 16MHz STM8S 8bit MCU supports communications interfaces and 3 timers, UART, SPI, I²C.
- 16MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
- Extended instruction set
- Internal, user-trimmable 16MHz RC, internal low power 128KHz RC
- Clock security system with clock monitor
- low power modes and switch-off peripheral clocks individually power management
- Permanently active, low-consumption power-on and power-down reset
- Nested interrupt controller with 32 interrupts and up to 27 external interrupts on 6 vectors
- 10bit ADC, ± 1 LSB ADC with up to 5 multiplexed channels, scan mode and analogue watchdog
- Up to 28 I/Os on a 32-pin package including 21 high-sink outputs
- Embedded single-wire interface module for fast on-chip programming and non-intrusive debugging
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: STM8 Family STM8S Series Microcontrollers |
| Device Core: STM8 |
| Operating Frequency Max: 16MHz |
| Program Memory Size: 8KB |
| No. of Pins: 20Pins |
| IC Case / Package: UFQFPN |
| No. of I/O's: 16I/O's |
| Interfaces: I2C, SPI, UART |
| RAM Memory Size: 1KB |
| ADC Channels: 5Channels |
| ADC Resolution: 10Bit |
| Supply Voltage Min: 2.95V |
| Supply Voltage Max: 5.5V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: STM8 |
| MCU Series: STM8S |
| Qualification: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STM8S003F3U6TR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
