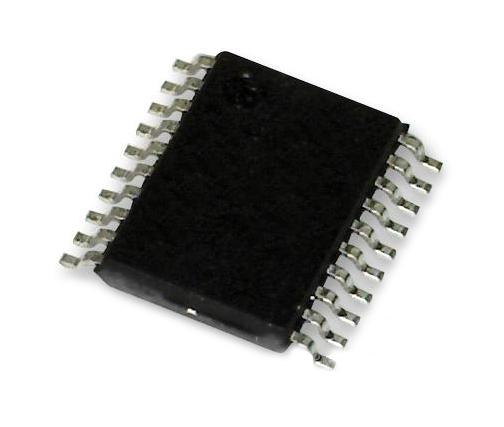

Stmicroelectronics STM8L151F3P6 STM8L151F3P6 8 Bit MCU Ultra Low Power STM8 Family STM8L Series Microcontrollers 16 MHz KB 20 Pins

The Low density Ultralow power device feature an enhanced STM8 CPU core providing increased processing power while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations. It includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive in-application debugging and ultrafast Flash programming. The microcontrollers feature embedded data EEPROM and low power low-voltage single-supply program Flash memory. The device incorporate an extensive range of enhanced I/Os and peripherals, a 12-bit ADC, two comparators, a real-time clock, two 16-bit timers, one 8-bit timer, as well as standard communication interfaces such as an SPI, an I2C interface, and one USART.

• Low power features
• Advanced STM8 core
• Reset and supply management
• Clock management
• Low power RTC
• Memories: Flash, EEPROM with ECC, RAM
• DMA
• 12-bit ADC up to 1 Msps/28 channels
• 2 ultralow power comparators
• Timers
• Communication interfaces
• Up to 41 I/Os, all mappable on interrupt vectors
• Up to 20 capacitive sensing channels
• Development support
• 96-bit unique ID

Applications

Medical, Automation & Process Control, Wireless

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	STM8L151F3P6
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
