STM32WBA52CGU6 is a multiprotocol wireless 32-bit MCU featuring Arm®-based Cortex®-M33 with TrustZone®, FPU, Bluetooth® 5.3 radio solution. It contains a high-performance Arm Cortex-M33 32-bit RISC core. This operates at a frequency of up to 100MHz. The devices integrate a 2.4GHz RADIO supporting Bluetooth low energy and make it possible to use proprietary protocols. The Cortex-M33 core features a single-precision floating-point unit (FPU), supporting all the Arm single-precision data-processing instructions and all the data types. The Cortex-M33 core also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) that enhances the application's security. The devices embed high-speed memories (up to 1Mbyte of flash memory and up to 128Kbytes of SRAM), an extensive range of enhanced I/Os and peripherals connected to AHB and APB buses on the 32-bit multi-AHB bus matrix.
- Ultra low power radio, proprietary protocols, RX sensitivity -96dBm
- Programmable output power up to +10dBm with 1dB steps, integrated balun to reduce BOM
- Ultra-low-power platform with FlexPowerControl, 1Mbyte flash memory size, public key accelerator
- Autonomous peripherals with DMA, functional down to Stop 1 mode
- Power management embedded regulator LDO supporting voltage scaling
- Clock sources, 32MHz crystal oscillator, 32KHz crystal oscillator (LSE)
- Rich analogue peripherals, 12bit ADC 2.5Msps with hardware oversampling
- Communication peripherals, three UARTs (ISO 7816, IrDA, modem), 2 SPIs, 2 I2C, 2 USART, LPUART
- Touch sensing controller (up to 20 sensors), supporting touch key, linear, and rotary touch sensors

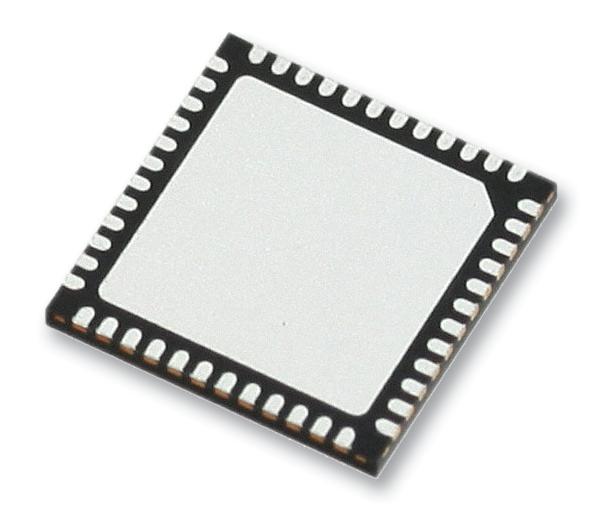

- 48pin UFQFPN package, temperature range from -40 to 85°C, 1.71 to 3.6V operating voltage
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32WBA52CGU6 |
| Quantity |
Each |
