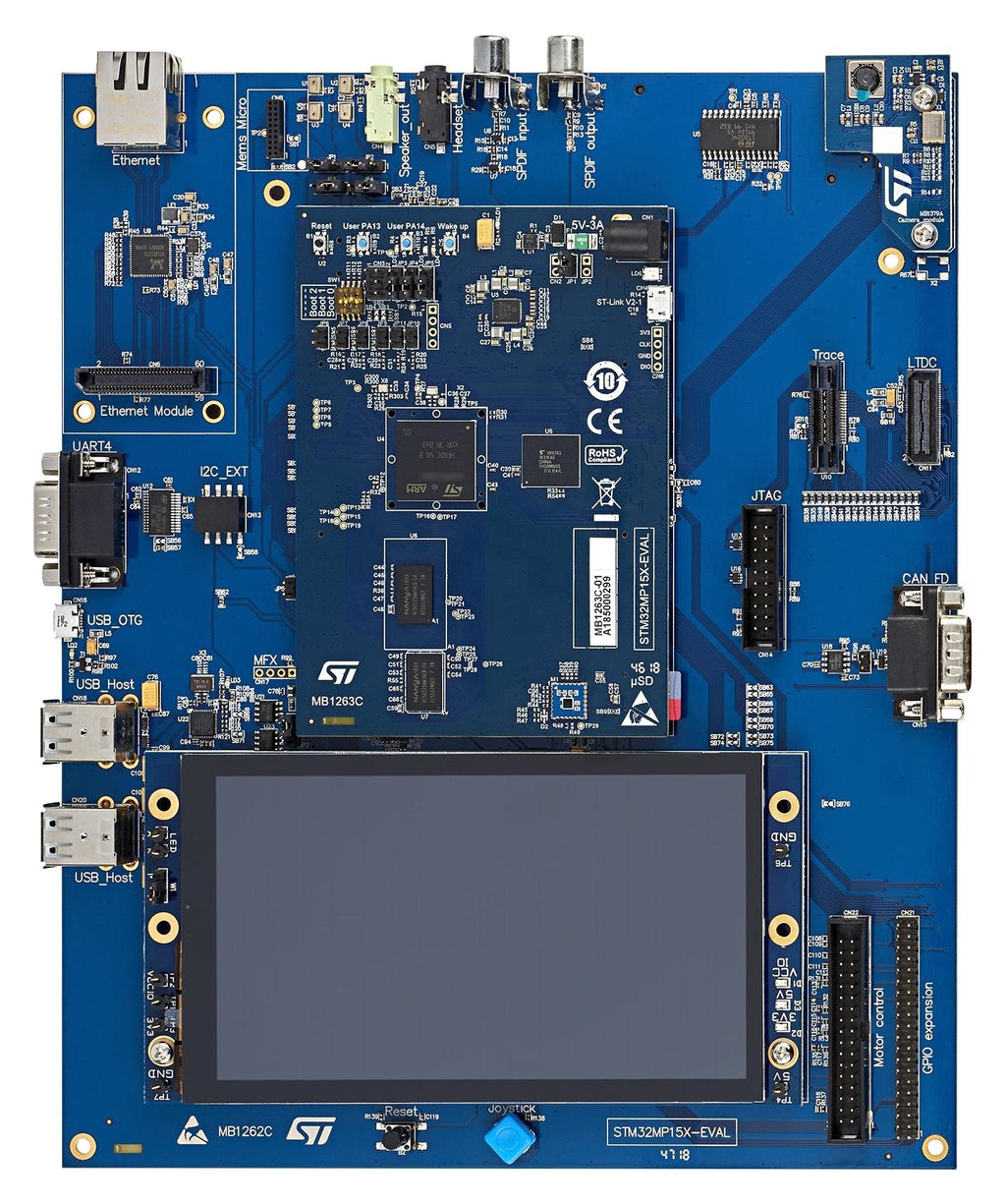

- Evaluation board with STM32MP157F MPU
- STM32MP157 Arm®-based dual Cortex®?A7 800 MHz 32 bits + Cortex®?M4 32 bits MPU in LFBGA448 package
- ST PMIC STPMIC1
- 2 × 4Gbit DDR3L, 16 bits, 53 MHz
- 2 × 512Mbit Quad-SPI Flash memory
- 32-Gbit eMMC v5.0
- 8-Gbit SLC NAND, 8 bits, 8-bit ECC, 4-KB PS
- USB Host 4-port hub, USB OTG HS
- 5.5" TFT 720×1280 pixels with LED backlight, MIPI DSISM interface and capacitive touch panel
Product details
| Silicon Manufacturer |
STMicroelectronics |
| No. of Bits |
32bit |
| Silicon Family Name |
STM32 |
| Core Architecture |
ARM |
| Core Sub-Architecture |
Cortex-A7, Cortex-M4 |
| Silicon Core Number |
STM32MP157FAA1 |
| Kit Contents |
Evaluation Board STM32MP157FAA1 |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32MP157F-EV1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
