Ultra-low power 32bit MCU ARM®-based Cortex®-M3. It supports 9x peripheral communication interfaces, 11x timers. It is suitable for use with medical and handheld equipment, application control and user interface, PC peripherals, gaming, GPS and sport equipment, alarm systems, wired and wireless sensors, video intercom and utility metering applications.
- low power, ultra safe BOR (brownout reset) with 5 selectable thresholds
- Ultra-low power POR/PDR, programmable voltage detector (PVD)
- 1.25 DMIPS/MHz (Dhrystone 2.1), memory protection unit
- Internal multispeed low power 65KHz to 4.2MHz PLL for CPU clock and USB (48MHz)
- USB and USART supported pre-programmed bootloader
- Up to 83 fast I/Os (102 I/Os 5V tolerant), all mappable on 16 external interrupt vectors
- Serial wire debug supported, JTAG and trace supported
- DMA controller 12x channels
- Up to 23 capacitive sensing channels
- CRC calculation unit, 96-bit unique ID
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32L152CCU6 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|

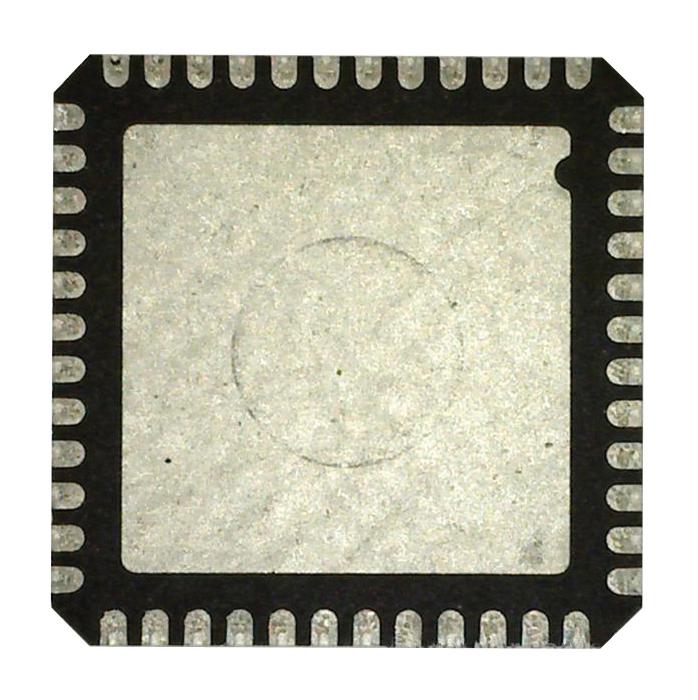

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
