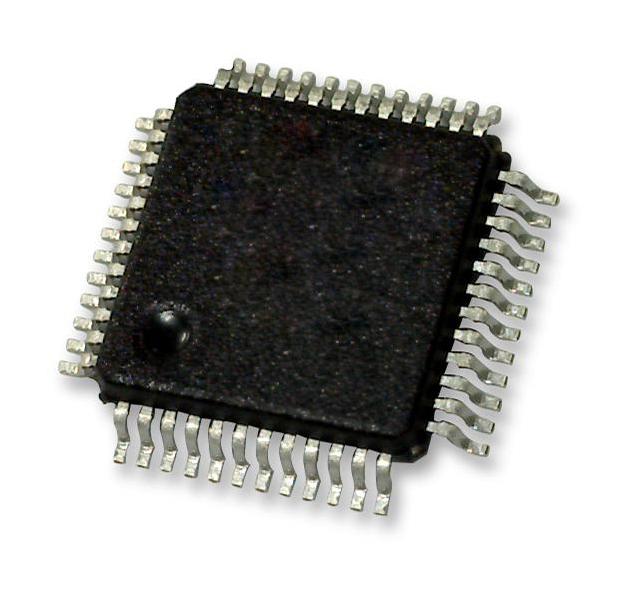

Stmicroelectronics STM32L152C8T6A ARM MCU Ultra Low Power STM32 Family STM32L1 Series Microcontrollers Cortex-M3 32 bit

The STM32L152C8T6A is an ultra-low-power STM32 L1 series 32-bit Microcontroller incorporates the connectivity power of the universal serial bus (USB) with the high-performance ARM Cortex-M3 RISC core operating at a frequency of 32MHz (33.3 DMIPS). It features a memory protection unit (MPU), high-speed embedded memories (Flash memory up to 64kB and RAM up to 10KB) and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The devices offer one 12-bit ADC, two DACs, two ultra-low-power comparators, six general-purpose 16-bit timers and two basic timers, which can be used as time bases. The device contain standard and advanced communication interfaces - two I²Cs, two SPIs, three USARTs and an USB.

• 1.25 DMIPS/MHz (Dhrystone 2.1)
• Ultra-safe, low-power BOR (brownout reset) with 5 selectable thresholds
• Ultralow-power POR/PDR
• Programmable voltage detector (PVD)
• 1 to 24MHz Crystal oscillator
• 32kHz Oscillator for RTC with calibration
• High-speed internal 16MHz factory-trimmed RC (±1%)
• Internal low-power 37kHz RC
• Internal multispeed low-power 65kHz to 4.2MHz clock
• PLL for CPU clock and USB (48MHz)
• Pre-programmed bootloader - USART supported
• Serial wire debug supported
• JTAG and trace supported
• LCD Driver
• 7-channel DMA Controller
• USB 2.0 (internal 48MHz PLL)
• 2 x Watchdog timers (Independent and window)
• Up to 20 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
• CRC calculation unit
• 96-bit Unique ID

Applications

Medical, Portable Devices, Automation & Process Control, Computers & Computer Peripherals, Communications & Networking, Security, Consumer Electronics, Metering, Sensing & Instrumentation, Imaging, Video & Vision

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	STM32L152C8T6A
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
