Description

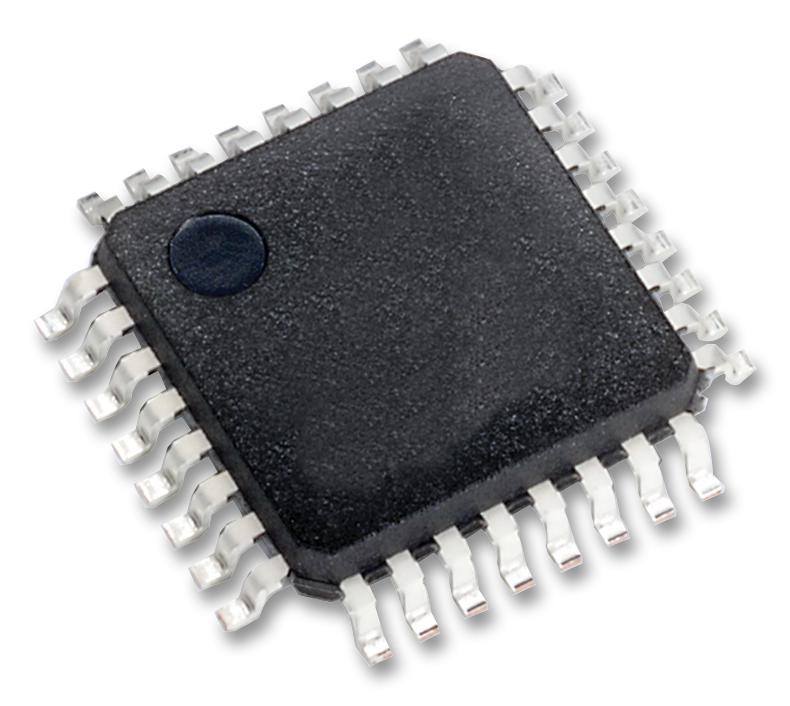

The STM32L052K8T6 is a Microcontroller Unit incorporates the connectivity power of the universal serial bus with the high-performance ARM® Cortex®-M0+ 32-bit RISC core operating at a 32MHz frequency, a memory protection unit (MPU), high-speed embedded memories plus an extensive range of enhanced I/Os and peripherals. This device provides high power efficiency for a wide range of performance. It is achieved with a large choice of internal and external clock sources, an internal voltage adaptation and several low-power modes.
- Ultralow-power platform
- 1.65 to 3.6V Power supply
- 0.27µA Standby mode (2 wakeup pins)
- 88µA/MHz Run mode
- From 32kHz up to 32MHz maximum
- Ultra-safe, low-power BOR with 5
- Ultralow power POR/PDR
- Programmable voltage detector (PVD)
- 1 to 25MHz Crystal oscillator
- 32kHz Oscillator for RTC with calibration
- Programmable voltage detector (PVD)
- Serial wire debug supported
- Rich analogue peripherals
- 12-bit ADC 1.14Msps Up to 16 channels (down to 1.65V)
- 2x Ultralow-power comparators
- Up to 24 capacitive sensing channels supporting touchkey, linear and rotary touch sensors
- 8x Peripheral communication interfaces
- CRC calculation unit
- 96-bit Unique ID
- True RNG and firewall protection
Sensing & Instrumentation, Consumer Electronics
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
Brand | STMICROELECTRONICS |
Part Number | STM32L052K8T6 |
Quantity | Each |
Technical Data Sheet EN | |
Product Change Notice EN |
