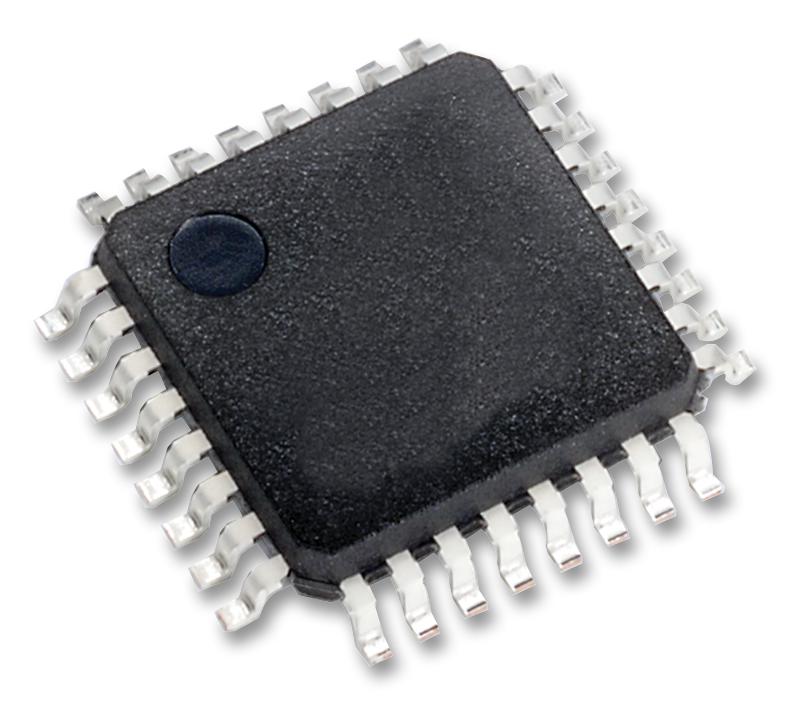

Value line ultra-low power 32bit MCU ARM®-based Cortex®-M0+.
- Ultra-low power BOR (brownout reset) with 5 selectable thresholds
- Ultra-low power POR/PDR
- 0 to 32MHz external clock, PLL for CPU clock
- USART, SPI supported pre-programmed bootloader
- Serial wire debug supported
- Up to 51 fast I/Os (45 I/Os 5V tolerant)
- 256 bytes of data EEPROM, 8Kbyte RAM, 20byte backup register
- 7-channel DMA controller, supporting ADC, SPI, I2C, USART and timers
- 4x peripherals communication interface, 1x SPI 16Mbit/s, 1x I2C (SMBus/PMBus)
- CRC calculation unit, 96-bit unique ID
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32L010K8T6 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
