| ₹ 2654.77 includes GST and import duties. | |
| B2B customers can avail ₹ 404.85 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
32bit ARM® Cortex®-M7 480MHz MCU. It supports up to 35 communication peripherals and up to 22 timers and watchdogs. Suitable for use in motor drive and application control, medical equipment, industrial applications such as PLC, inverters, circuit breakers, printers and scanners, alarm systems, video intercom and HVAC, home audio appliances, mobile applications, Internet of Things, wearable devices: smart watches.
- STM32H7x3 with cryptographic accelerator, 1027 DMIPS/2.14 DMIPS/MHz (Dhrystone 2.1)
- Flexible external memory controller with up to 32bit data bus and CRC calculation unit
- ROP, PC-ROP, active tamper secure firmware upgrade support, secure access mode
- Up to 168 I/O ports with interrupt capability
- POR, PDR, PVD and BOR reset and power management
- Embedded regulator (LDO) with configurable scalable output to supply the digital circuitry
- CPU and domain power state monitoring pins
- Interconnect matrix and LCD-TFT controller up to XGA resolution
- SWD & JTAG interfaces and 4-Kbyte embedded trace buffer
- 4 DMA controllers to unload the CPU, 11 analogue peripherals, 96-bit unique ID and
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: STM32 Family STM32H7 Series Microcontrollers |
| Device Core: ARM Cortex-M7 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 400MHz |
| Program Memory Size: 2MB |
| No. of Pins: 208Pins |

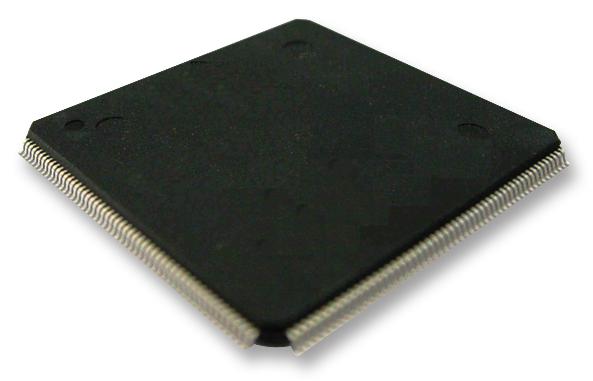

| IC Case / Package: LQFP |
| No. of I/O's: 168I/O's |
| Interfaces: CAN, Ethernet, I2C, I2S, SAI, SPI, UART, USART, USB |
| RAM Memory Size: 1MB |
| ADC Channels: 32Channels |
| ADC Resolution: 16Bit |
| Supply Voltage Min: 1.62V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: STM32 |
| MCU Series: STM32H7 |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STM32H753BIT6 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2601.67 |
| 3-5 | ₹ 2575.13 |
| 5-10 | ₹ 2522.03 |
| 10+ | ₹ 2468.94 |
Bulk discount will be automatically applied during checkout based on quantity.
