Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range:
STM32 Family STM32H7 Series Microcontrollers
|
| Device Core:
ARM Cortex-M7F
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
550MHz
|
| Program Memory Size:
128KB
|
| No. of Pins:
169Pins
|
| IC Case / Package:
UFBGA
|
| No. of I/O's:
121I/O's
|
| Interfaces:
CAN, Ethernet, I2C, I2S, SAI, SPI, UART, USART, USB
|
| RAM Memory Size:
564KB
|
| ADC Channels:
55Channels
|
| ADC Resolution:
12Bit, 16Bit
|
| Supply Voltage Min:
1.62V
|
| Supply Voltage Max:
3.6V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
STM32
|
| MCU Series:
STM32H7
|
| Qualification:
-
|
| MSL:
MSL 3 - 168 hours
|
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |

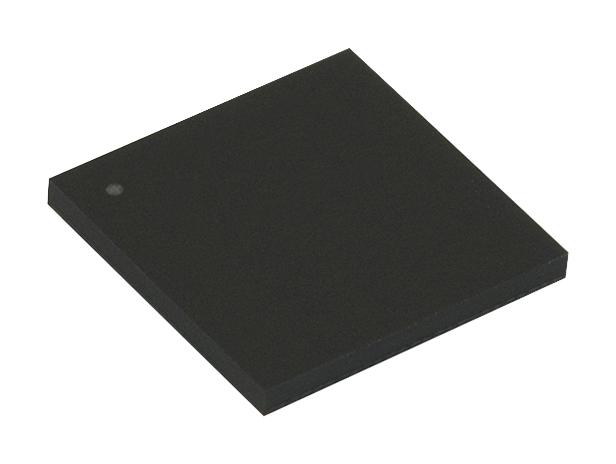

STM32H730ABI6Q |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
