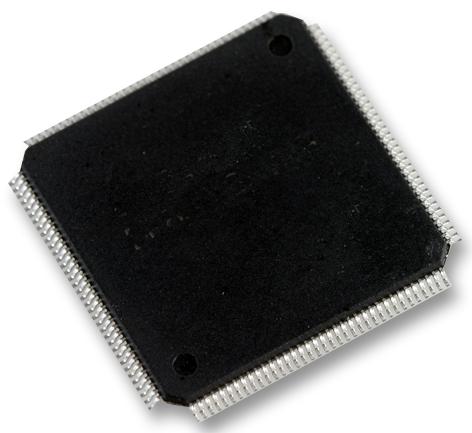

STM32H563ZIT6 is a high-performance, Arm Cortex-M33 Arm based 32bit microcontroller (MCU) with trust zone, 2MByte flash, 640Kbyte RAM, and 250MHz CPU. It features a single-precision floating-point unit (FPU), that supports all the Arm® single-precision data-processing instructions and all the data types. It also implements a full set of DSP (digital signal processing) instructions and a memory protection unit (MPU) that enhances the application's security. The device offers high-speed memories (2 Mbytes of dual bank flash memory and 640Kbytes of SRAM), a flexible external memory controller (FMC), one Octo-SPI memory interface, and an extensive range of enhanced I/Os and peripherals connected to three APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix. The devices offer security foundations compliant with the trusted-based security architecture (TBSA) requirements from Arm®.
- 8Kbyte instruction cache allowing 0-wait-state execution from flash, external memories
- 2Kbyte OTP (one-time programmable), 4Kbytes of backup SRAM available in the lowest power modes
- Internal oscillators: 64 MHz HSI, 48 MHz HSI48, 4 MHz CSI, 32 KHz LSI
- CORDIC co-processor, filter mathematical accelerator (FMAC), Real time clock (RTC
- Sleep, stop and standby modes, VBAT supply for RTC, 32x 32-bit backup registers
- Arm® TrustZone® with Armv8-M mainline security extension, SFI (secure firmware installation)
- Flexible life-cycle scheme with secure debug authentication
- Two dual-port DMAs with FIFO, FMAC (filter mathematical accelerator)
- Two 12bit ADC, one 12bit DAC controller, true random number generator
- LQFP144 package, industrial temperature range from -40 to 125°C (130°C junction)
Product details
| Product Range:
STM32 Family STM32H5 Series Microcontrollers
|
| Device Core:
ARM Cortex-M33F
|
| Operating Frequency Max:
250MHz
|
| Program Memory Size:
2MB
|
| No. of Pins:
144Pins
|
| IC Case / Package:
LQFP
|
| No. of I/O's:
112I/O's
|
| Interfaces:
CAN, Ethernet, I2C, I3C, I2S, SAI, SPI, UART, USART, USB
|
| RAM Memory Size:
640KB
|
| ADC Channels:
20Channels
|
| ADC Resolution:
12Bit
|
| Supply Voltage Min:
1.71V
|
| Supply Voltage Max:
3.6V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
STM32
|
| MCU Series:
STM32H5
|
| Qualification:
-
|
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32H563ZIT6 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
