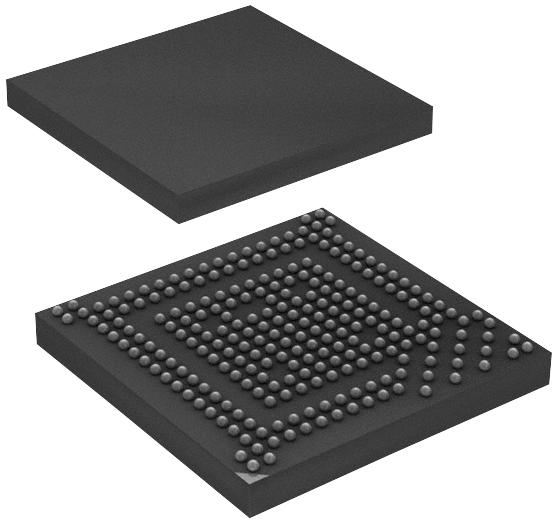

STMICROELECTRONICS STM32F777NIH6 ARM MCU, STM32 Family STM32F7 Series Microcontrollers, ARM Cortex-M7F, 32 bit, 216 MHz, 2 MB

STM32F777NIH6 is an Arm® Cortex®-M7 32B MCU+FPU, 462DMIPS, up to 2MB flash/512+16+4KB RAM, crypto, USB OTG HS/FS, 28 com IF, LCD, DSI. This device is based on the high-performance Arm® Cortex®-M7 32bit RISC core operating at up to 216MHz frequency. The Cortex®-M7 core features a floating point unit (FPU) that supports Arm® double-precision and single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances the application security. The device incorporates high-speed embedded memories with a flash memory up to 2Mbytes, 512Kbytes of SRAM 16Kbytes of instruction TCM RAM (for critical real-time routines), 4 Kbytes of backup SRAM available in the lowest power modes, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, a 32bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memories access.

• Core: Arm® 32bit Cortex®-M7 CPU with DPFPU, ART Acceleratorâ�¢ and L1-cache
• Dual mode quad-SPI and up to 28 communication interfaces
• LCD-TFT controller supporting up to XGA resolution
• MIPI® DSI host controller supporting up to 720p 30Hz resolution
• 1.7V to 3.6V supply and I/Os, internal 32KHz RC with calibration and 4 to 26MHz crystal oscillator
• Sleep, stop and standby modes and 2Ã�12-bit D/A converters
• General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
• Cortex®-M7 Trace Macrocellâ�¢ and SWD & JTAG interfaces debug mode
• True random number generator and CRC calculation unit
• RTC: sub second accuracy, hardware calendar and 96bit unique ID

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
