Description

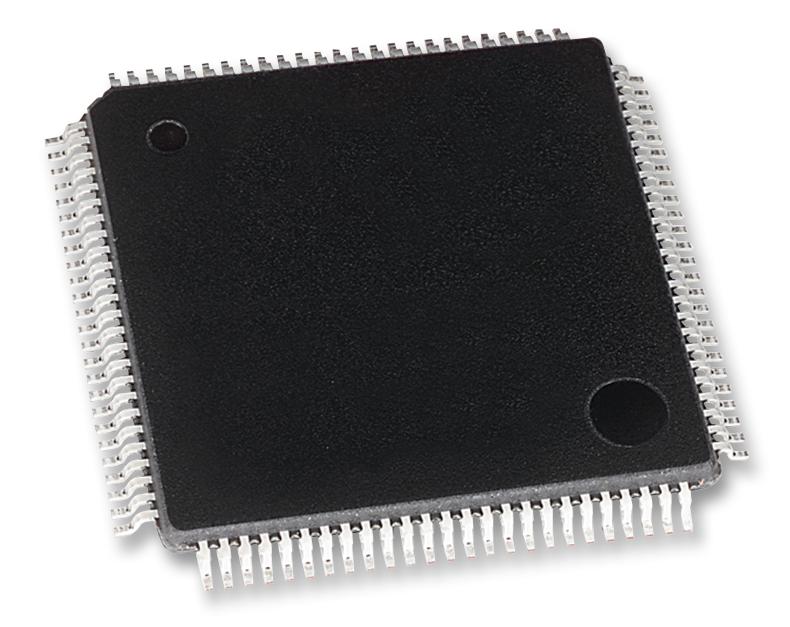

The STM32F427xx devices are based on the high-performance ARM Cortex-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
- Up to three I2C
- Six SPIs, two I2S full duplex
- Four USART plus four UART
- Two CAN
- Ethernet and camera interface
Applications
Motor Drive & Control, Medical, Industrial, Audio
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: STM32 Family STM32F4 Series Microcontrollers |
| Device Core: ARM Cortex-M4 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 16MHz |
| Program Memory Size: 1MB |
| No. of Pins: 100Pins |
| IC Case / Package: LQFP |
| No. of I/O's: 164I/O's |
| Interfaces: CAN, I2C, UART, USB |
| RAM Memory Size: 256KB |
| ADC Channels: 16Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 1.7V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 105°C |
| IC Mounting: Surface Mount |
| MCU Family: STM32 |
| MCU Series: STM32F4 |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STM32F427VGT7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
