| ₹ 2103.21 includes GST and import duties. | |
| B2B customers can avail ₹ 320.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

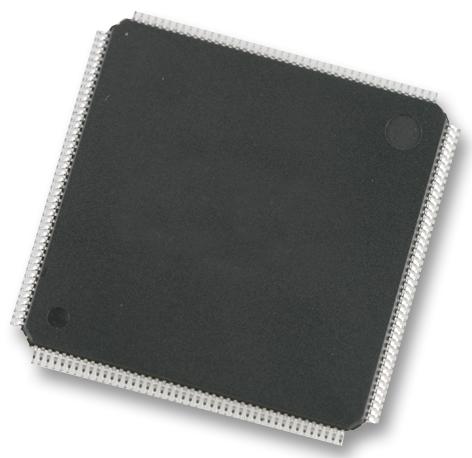

The STM32F407IGT6 is a 32-bit 176-pin advanced connectivity and encryption Microcontroller Unit features a floating point unit single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit which enhances application security. It incorporates high-speed embedded memories up to 4kB of backup SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix. This device offers three 12-bit ADCs, two DACs, a low-power RTC and twelve general-purpose 16-bit timers, two general-purpose 32-bit timers, a true random number generator and also features standard and advanced communication interfaces.
- LCD parallel interface, 8080/6800 modes
- Clock, reset and supply management - POR, PDR, PVD and BOR
- Low-power operation - Sleep, stop and standby modes
- General-purpose DMA - 16-stream DMA controller with FIFOs and burst support
- Debug mode - Serial wire debug (SWD) and JTAG interfaces
- Cortex-M4 embedded trace Macrocell�
- True random number generator
- CRC calculation unit
- 96-bit Unique ID
- RTC - sub second accuracy, hardware calendar
Applications
Motor Drive & Control, Medical, Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Industrial, Security, Imaging, Video & Vision, HVAC
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: STM32 Family STM32F4 Series Microcontrollers |
| Device Core: ARM Cortex-M4 |
| Data Bus Width: 32 bit |
| Operating Frequency Max: 168MHz |
| Program Memory Size: 1MB |
| No. of Pins: 176Pins |
| IC Case / Package: LQFP |
| No. of I/O's: 140I/O's |
| Interfaces: CAN, ENET, I2C, SPI, UART, USART, USB |
| RAM Memory Size: 196KB |
| ADC Channels: 24Channels |
| ADC Resolution: 12Bit |
| Supply Voltage Min: 1.8V |
| Supply Voltage Max: 3.6V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| IC Mounting: Surface Mount |
| MCU Family: STM32 |
| MCU Series: STM32F4 |
| Qualification: - |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STM32F407IGT6 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2061.15 |
| 3-5 | ₹ 2040.11 |
| 5-10 | ₹ 1998.05 |
| 10+ | ₹ 1955.99 |
Bulk discount will be automatically applied during checkout based on quantity.
