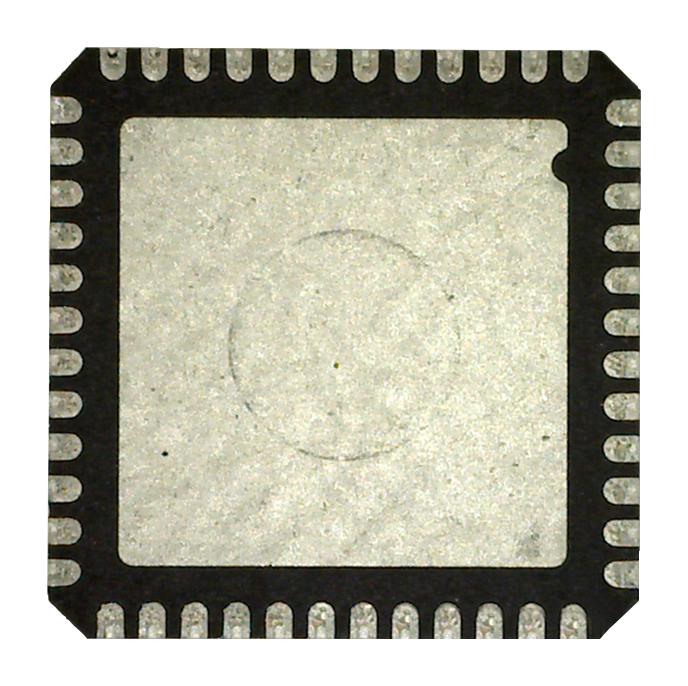

Stmicroelectronics STM32F401CCU6 ARM MCU Dynamic Efficiency Line STM32 Family STM32F4 Series Microcontrollers Cortex-M4

The STM32F401CCU6 is a 32-bit 256kB flash high-performance access line Microcontroller Unit features a floating point unit single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit which enhances application security. It incorporates high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. This offers one 12-bit ADC, a low-power RTC, six general-purpose 16-bit timers including one PWM timer for motor control and two general-purpose 32-bit timers and also features standard and advanced communication interfaces.

• Clock, reset and supply management - POR, PDR, PVD and BOR
• General-purpose DMA - 16-stream DMA controllers with FIFOs and burst support
• Debug mode - Serial wire debug (SWD) and JTAG interfaces
• Cortex-M4 embedded trace Macrocellâ�¢
• CRC calculation unit
• 96-bit Unique ID
• RTC - sub second accuracy, hardware calendar

Applications

Motor Drive & Control, Medical, Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Industrial, Security, Imaging, Video & Vision, HVAC

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	STM32F401CCU6
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
