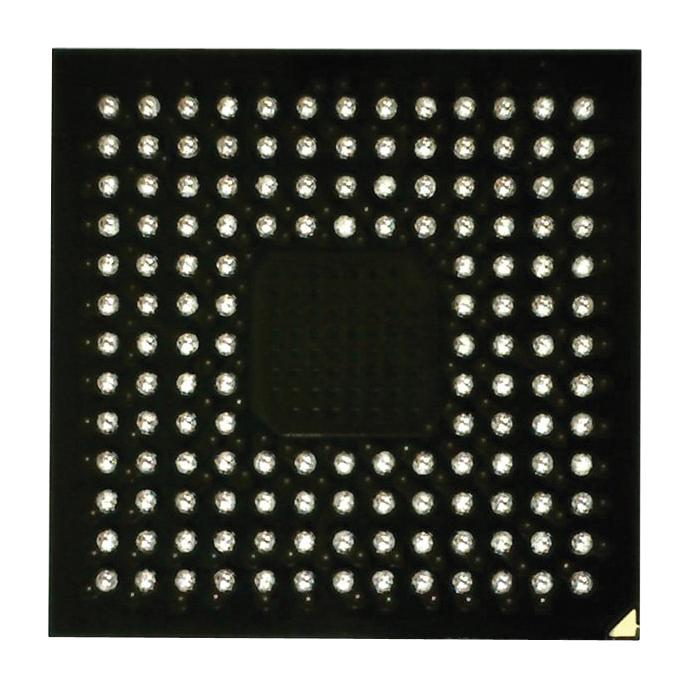

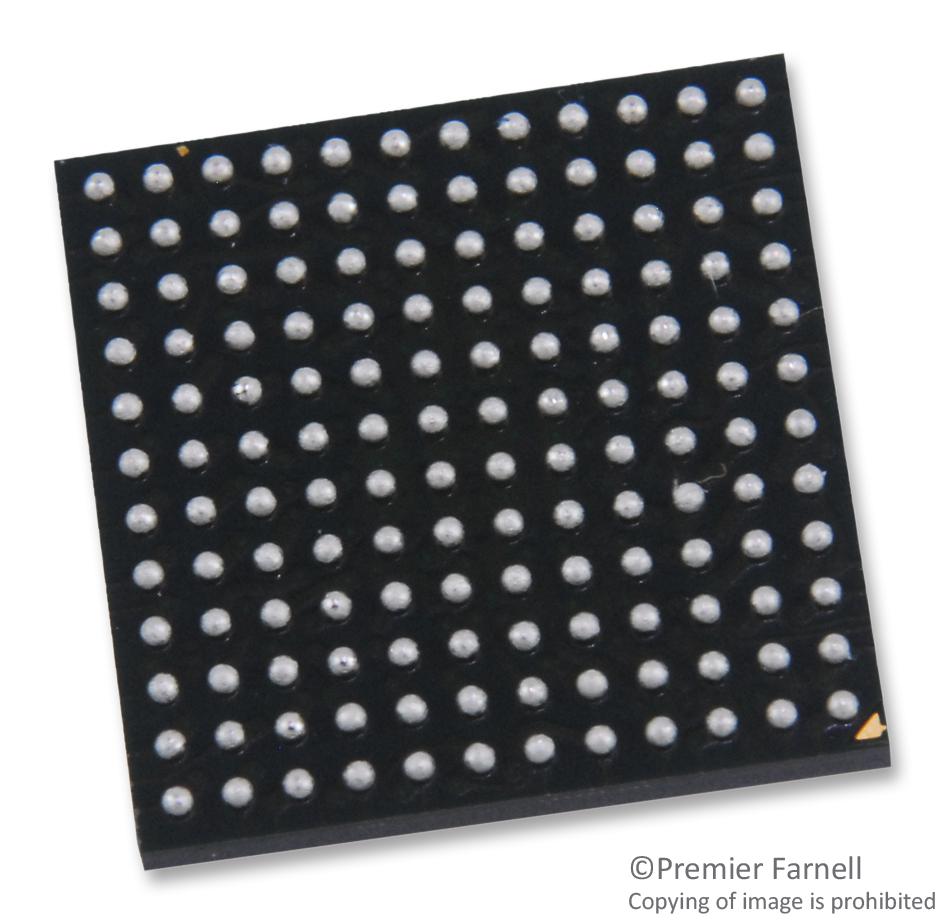

Stmicroelectronics STM32F103ZGH6 ARM MCU Motor Control STM32 Family STM32F1 Series Microcontrollers Cortex-M3 32 bit 72 MHz

The STM32F103ZGH6 is a XL-density performance line STM32 F1 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M3 RISC core operating at a 72MHz frequency, high speed embedded memories (Flash memory up to 1024kB and SRAM up to 96KB) and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This device offer three 12-bit ADCs, ten general purpose 16-bit timers plus one PWM timer, as well as standard communication interfaces - up to two I²Cs, three SPIs, two I²Ss, one SDIO, five USARTs, an USB and a CAN.

• 72MHz Maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
• Single cycle multiplication and hardware division
• Flexible static memory controller with 4 chip select
• LCD parallel interface, 8080/6800 modes
• Clock, reset and supply management
• POR, PDR and programmable voltage detector (PVD)
• 4 to 16MHz Crystal oscillator
• Internal 8MHz factory trimmed RC
• Internal 40kHz RC
• 32kHz Oscillator for RTC with calibration
• Sleep, stop and standby modes
• VBAT supply for RTC and backup registers
• 12-channel DMA Controller
• Serial wire debug (SWD) and JTAG interfaces
• Cortex-M3 embedded trace macrocellâ�¢
• 2 x Watchdog timers (Independent and window)
• SysTick Timer
• CAN interface (2.0B Active)
• USB 2.0 full speed interface
• 96-bit Unique ID

Applications

Motor Drive & Control, Automation & Process Control, Medical, Computers & Computer Peripherals, Communications & Networking, Industrial, Consumer Electronics, Security, Imaging, Video & Vision, Power Management

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	STM32F103ZGH6
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
