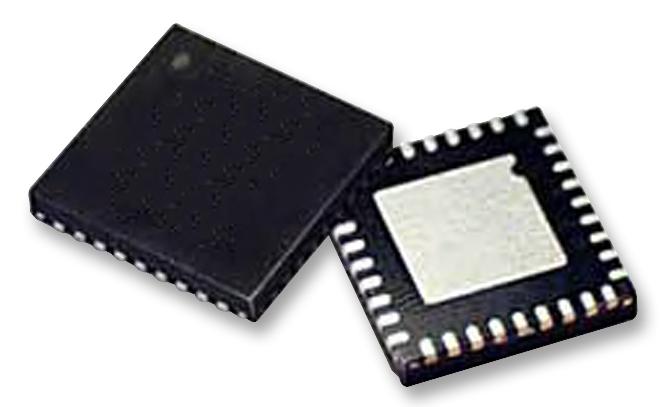

Medium-density performance line ARM®-based 32bit MCU. It is suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms and HVACs.
- Clock, reset and supply management (internal (8MHz factory-trimmed RC, 40KHz RC), PLL for CPU clock)
- Sleep, stop and standby modes
- 2 x 12bit, 1µs ADC (up to 16channels)
- 7channel DMA controller
- Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
- Up to 80 fast I/O ports
- Serial wire debug (SWD) & JTAG interfaces
- 7 timers and up to 9 communication interfaces
- CRC calculation unit, 96bit unique ID
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STM32F103TBU6 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD CadSoft_EAGLE EN |
|
| Product Change Notice EN |
|
