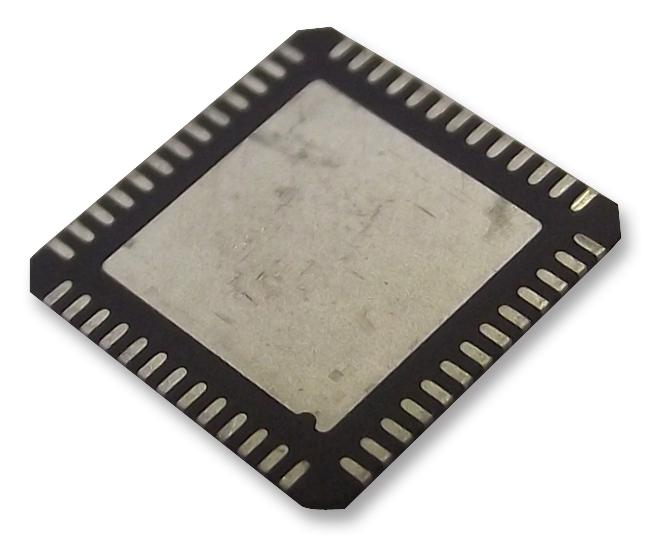

Stmicroelectronics STM32F072CBU6 ARM MCU USB Line STM32 Family STM32F0 Series Microcontrollers Cortex-M0 32 bit 48 MHz

The STM32F072CBU6 is a 32-bit Microcontroller Unit offers standard communication interfaces, one USB full speed device and one CAN, one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer and an advanced-control PWM timer. It incorporates the high-performance ARM® Cortex®-M0 32-bit RISC core operating at a 48MHz frequency, high-speed embedded memories (128kB of flash memory and 16kB of SRAM) and an extensive range of enhanced peripherals and I/Os.

• Power-on/power down reset
• Programmable voltage detector
• Low power modes - Sleep, stop and standby
• VBAT supply for RTC and backup registers
• All mappable on external interrupt vectors
• Up to 24 capacitive sensing channels supporting touch key, linear and rotary touch sensors
• Two fast low-power analogue comparators with programmable input and output
• Independent and system watchdog timers
• SysTick timer
• HDMI CEC, wakeup on header reception
• Serial wire debug
• 96-bit Unique ID

Applications

Portable Devices, Signal Processing, Consumer Electronics, Computers & Computer Peripherals, Communications & Networking, Industrial, Security, Imaging, Video & Vision, HVAC

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	STMICROELECTRONICS
Part Number	STM32F072CBU6
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
