Description

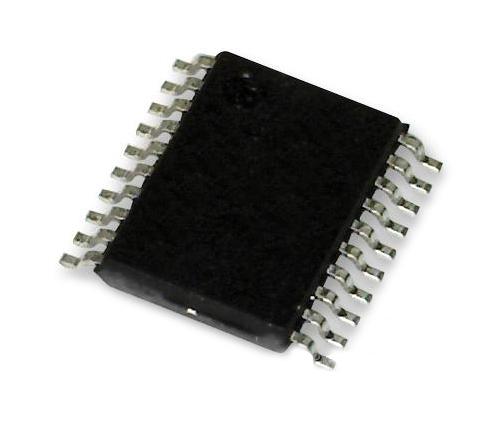

The STM32F031F6P7 is a general purpose ARM Cortex-M0 32bit microcontroller in 20 pin TSSOP package. This microcontroller incorporates a high performance RISC core with 48MHz maximum operating frequency, high speed embedded memories and an extensive range of enhanced peripherals and I/Os. The STM32F031F6P7 features standard communication interfaces, 12bit ADC, general purpose 16bit timers, 32bit timer and an advanced control PWM timer. A comprehensive set of power saving modes allows the design of low power applications.
- 32Kbytes of flash memory
- 4Kbytes of SRAM with HW parity
- CRC calculation unit
- Operating voltage range from 2V to 3.6V
- 15 fast I/O ports
- 5 channel DMA controller, five general purpose and one advanced timer
- One 12bit 1.0µs ADC
- Calendar RTC with alarm and periodic wakeup from stop/standby
- One SPI (I2S), one I2C, one USART interfaces
- Ambient operating temperature range from -40°C to 85°C
Embedded Design & Development, Portable Devices, Consumer Electronics, Communications & Networking, Wireless, Industrial, Imaging, Video & Vision
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | STMICROELECTRONICS |
| Part Number | STM32F031F6P7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
| Product Change Notice EN | |
