Description
The STGW30NC60WD is a 600V Ultra Fast IGBT that utilizes the advanced Power MESH� process resulting in an excellent trade-off between switching performance and low on-state behaviour. The IGBT is ideal for use in HF, SMPS and PFC in both hard switch and resonant topologies. Improved switch-off energy spread versus increasing temperature result in reduced switching losses.
- High frequency operation
- Lower CRES/CIES ratio (no cross-conduction susceptibility)
- Very soft ultra fast recovery anti-parallel diode
- Low VCE (sat) for reduced conduction losses
- Tight parameter distribution for design simplification and easy paralleling
Applications
Motor Drive & Control, Power Management
Product details

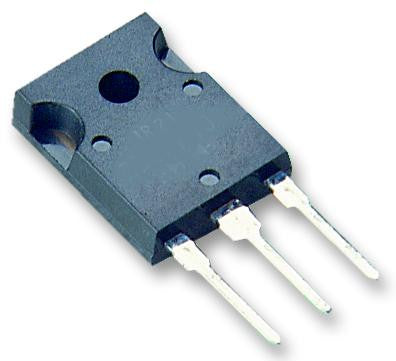

| Transistor Case Style | TO-247 |
| Power Dissipation Pd | 200W |
| DC Collector Current | 60A |
| Collector Emitter Voltage V(br)ceo | 600V |
| Automotive Qualification Standard | - |
| Product Range | - |
| Operating Temperature Max | 150�C |
| No. of Pins | 3Pins |
| Collector Emitter Saturation Voltage Vce(on) | 2.5V |
| MSL | - |
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STGW30NC60WD |
| Quantity | Each |
| Technical Data Sheet EN |  |
